3686484C93
SEAT, DRIVER, AIR SUSPENSION W/CHROME, LEATHER, BRICK
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,199.95
$1,439.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, DRIVER, AIR SUSPENSION W/CHROME, LEATHER, BRICK

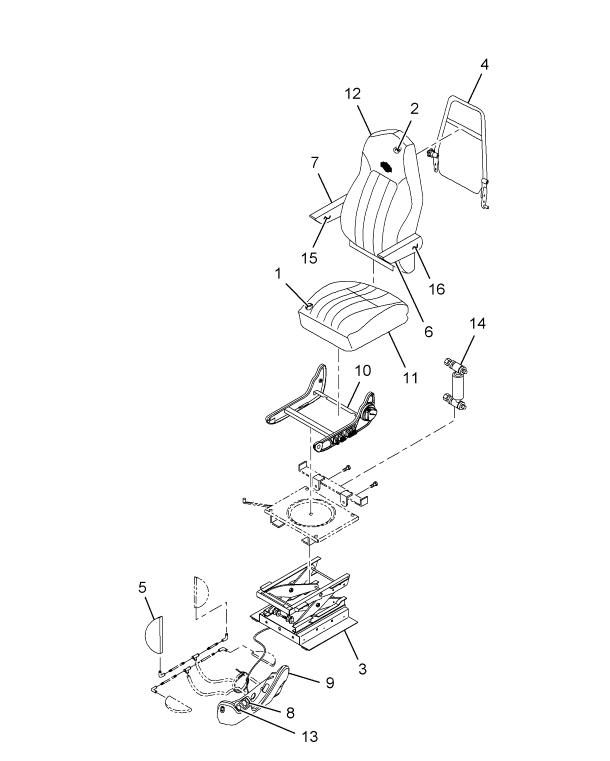

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT INDIVIDUAL | 1 | 2600846C1 |
| FR, SEAT | 1 | 2600564C1 |
| COVER, CUSHION SEAT | 1 | 2600848C1 |
| COVER, CUSHION BACK | 1 | 2600868C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| COVER, ARMREST RIGHT HAND Y | 1 | 2597799C1 |
| COVER, ARMREST LEFT HAND Y | 1 | 2597798C1 |
| CUSHION, BACK INDIVIDUAL SEAT | 1 | 2600866C1 |
| PEDESTAL, SEAT | 1 | 2594754C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| REST, ARM LEFT HAND Y | 1 | 2597792C1 |
| REST, ARM RIGHT HAND Y | 1 | 2597793C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| MANIFOLD ASSEMBLY | 1 | 2594766C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
