3686479C92

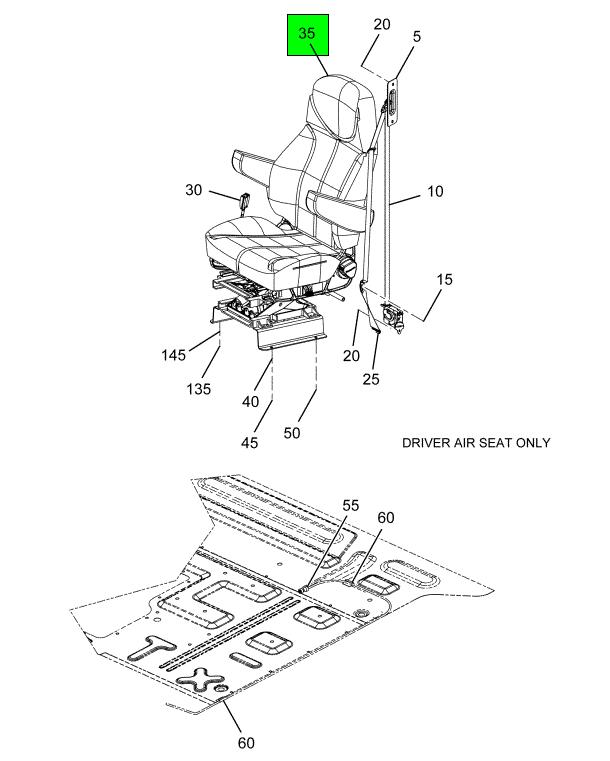

SEAT, DRIVER AIR SUSPENSION, LEATHER, BLUE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,199.95
$1,439.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER AIR SUSPENSION, LEATHER, BLUE

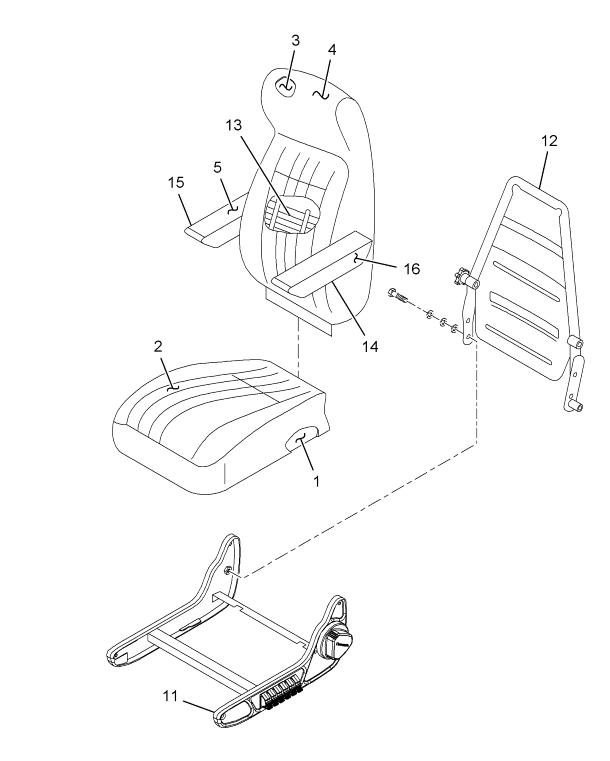

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| FR, LOWER SEAT Y | 1 | 2597790C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| REST ARM LEFT HAND | 1 | 2607345C1 |
| REST ARM RIGHT HAND | 1 | 2607346C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD ASSEMBLY, SEAT Y | 1 | 2597787C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| BASE, SWIVEL DRIVER | 1 | 2599748C1 |
| PEDESTAL SEAT | 1 | 2603334C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
