3672977C92
SEAT, DRIVER SELF CONTAINED W/COMPRESSOR, DUAL SHOCK ABSORBER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$619.95
$743.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER SELF CONTAINED W/COMPRESSOR, DUAL SHOCK ABSORBER
Weight
87.18 lbs

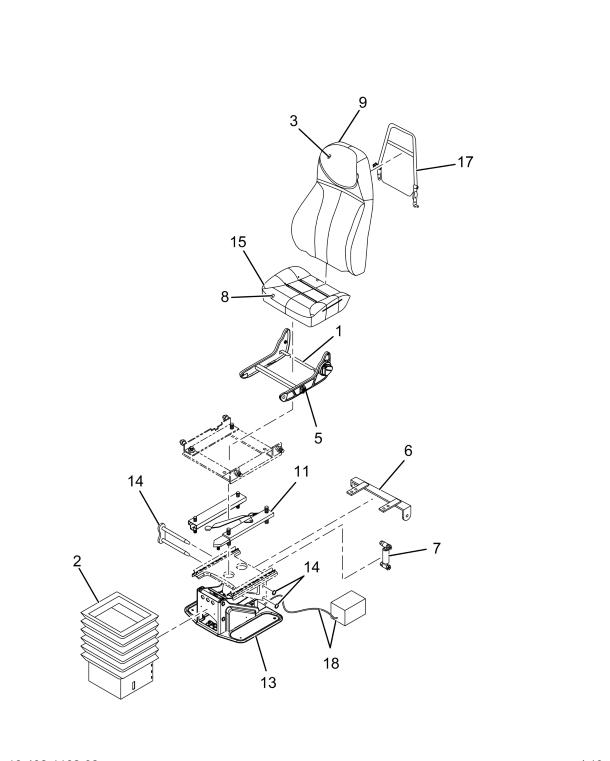

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2596196C1 |
| BASE, DRIVERS SEAT | 1 | 2587141C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2585431C1 |
| REST ARM LH | 1 | 2606972C1 |
| REST ARM RIGHT HAND | 1 | 2606973C1 |
| VALVE, AIR LEVEL SEAT ELECTRIC PADDLE | 1 | 2508945C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
