3672492C92
SEAT, OCCUPANT NATIONAL HIGH BACK CLOTH, RIGHT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$539.95
$647.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT, OCCUPANT NATIONAL HIGH BACK CLOTH, RIGHT

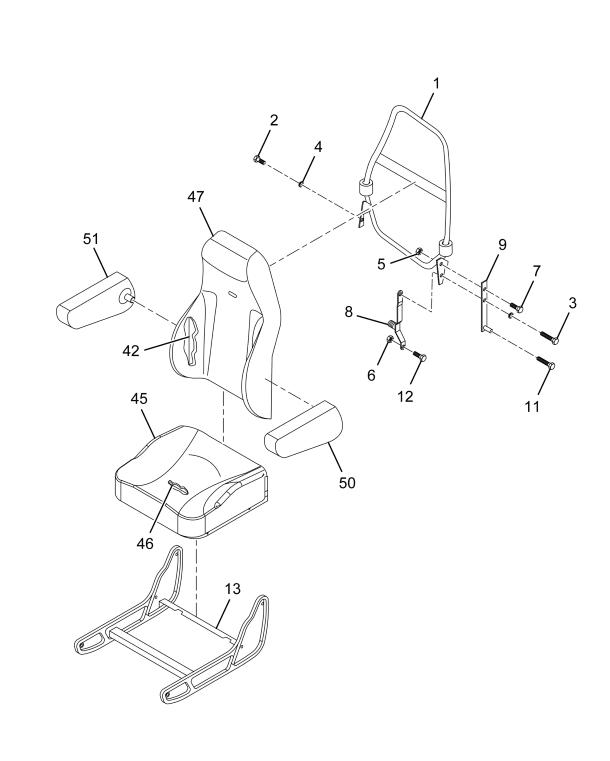

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FRAME, SEAT BACK | 1 | 2597791C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| CUSHION BACK HIGH CHRC CL AIR LM | 1 | 2595486C92 |
| COVER, SEAT CUSHION | 1 | 2607552C1 |
| CUSHION, SEAT CHRCL CLTH/VNYL | 1 | 2596189C92 |
| COVER, BACK CUSHION | 1 | 2598019C2 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| REST ARM LH | 1 | 2606399C1 |
| REST ARM LH | 1 | 2607554C1 |
| REST ARM RIGHT HAND | 1 | 2607555C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
CROSS REFERENCES
- NATL ST 50719.12A01A1
- NATL ST 50719.12A01A1
- NATL ST 50719.12A02A1
- NATL ST 50719.12A02A1
- NATL ST 5071912A01A
- NATL ST 5071912A01A
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
