3672207C93

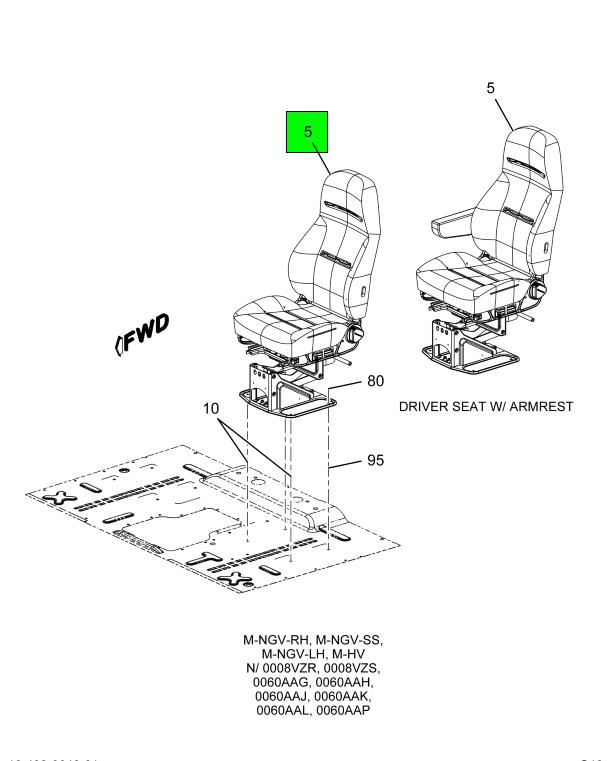

SEAT ,DVR NATL HIGH AIR SUSPENSION LEATHER INTERNATIONAL LOGO
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,449.95
$1,739.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT ,DVR NATL HIGH AIR SUSPENSION LEATHER INTERNATIONAL LOGO
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT CHARCOAL LEATHER AND VINYL | 1 | 2598012C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| COVER, CUSHION SEAT | 1 | 2597988C1 |
| COVER, BACK CUSHION | 1 | 2607315C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, LOWER SEAT | 1 | 2586959C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| CUSHION, BACK CHARCOAL LEATHER AND VINYL | 1 | 2598013C91 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| REST ARM LEFT HAND | 1 | 2607311C1 |
| REST ARM RIGHT HAND | 1 | 2607312C1 |
| COVER, SEAT ARMREST LH | 1 | 2607313C1 |
| COVER, ARMREST SEAT LEFT | 1 | 2597993C1 |
| COVER, SEAT ARMREST RIGHT HAND | 1 | 2607314C1 |
| COVER, ARMREST SEAT RIGHT | 1 | 2597994C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
