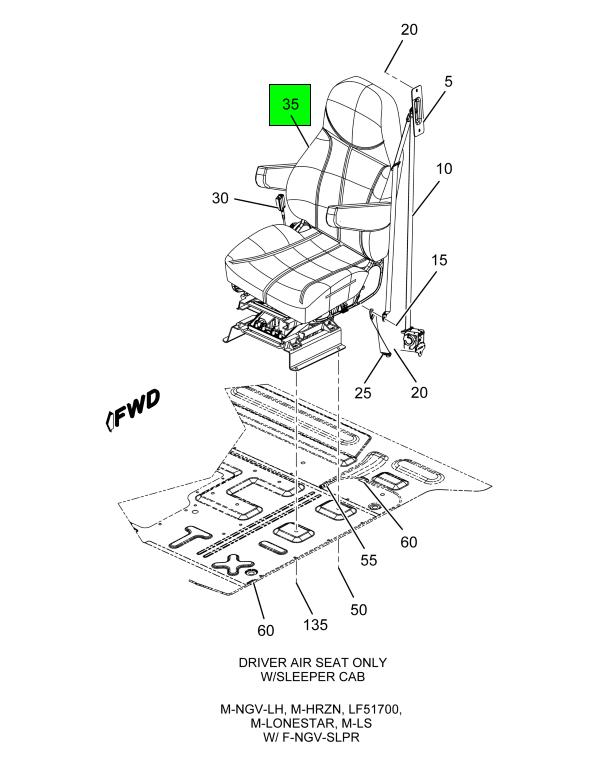

3669736C92
SEAT, DRIVER HIGH- BACK BLUE ATLAS 80
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$939.95
$1,127.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
" SEAT, DRIVER"HIGH- BACK BLUE ATLAS 80
VMRS
002-037-002
Weight
124.26 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| KIT BACK ASSEMBLY | 1 | 2614884C91 |
| KIT, SEAT EXTENSION | 1 | 2590134C91 |
| KIT, SEAT COVER RETAINER | 1 | 2590135C91 |
| TILT KIT, CUSHION SEAT 3- POSITION | 1 | 2593690C91 |
| SHAFT, BEARING SUSPENSION SEAT | 1 | 2593691C1 |
| KIT, SEAT BEARING SHAFT | 1 | 2590137C91 |
| KIT, SEAT BUMPER /ROLLER | 1 | 2590138C91 |
| KIT, SEAT SHOCK ABSORBER | 1 | 2590139C91 |
| HOUSING, CONTROL 3 VALVE | 1 | 2599489C1 |
| SPRING, AIR SEAT | 1 | 2503317C1 |
| KIT, TETHER | 1 | 2614905C1 |
| KIT, TETHER | 1 | 2614889C91 |
| FOAM, SEAT, BACK | 1 | 2614894C1 |
| KIT, BACK COVER, BLUE CLOTH | 1 | 2614886C91 |
| KIT, QUAD SEAT LUMBAR CONTROL | 1 | 2590141C91 |
| RECLINER KIT, BACK SEAT | 1 | 2593689C91 |
| PLATE, COVER | 1 | 2593694C1 |
| COVER KIT, SEAT BLUE CLOTH | 1 | 2593727C91 |
| FOAM, SEAT, CUSHION | 1 | 2614893C1 |
| CUSHION SEAT ASSEMBLY | 1 | 2614885C91 |
| ARMREST, RIGHT HAND | 1 | 2614892C1 |
| COVER, ARMREST | 1 | 2599550C1 |
| KIT, SKIRT, SUSPENSION | 1 | 2614887C91 |
| SEAT, SUSPENSION | 1 | 2610502C1 |
| MANIFOLD ,3 VALVE | 1 | 2610493C1 |
| KIT, HDW, ARM TO FR | 1 | 2614888C91 |
| RISER, SEAT, RIGHT HAND | 1 | 2513324C91 |
| RISER, SEAT, RIGHT HAND | 1 | 2614890C1 |
| RISER, SEAT, LH | 1 | 2614891C1 |
| FR, TUBE | 1 | 2614895C1 |
| KIT, 9" SEAT SLIDE ISOLATOR | 1 | 2590132C91 |
CROSS REFERENCES
- SEARS M NR825HQRSNSN
- SEARS M NR825HQRSNSN
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
