3669481C92

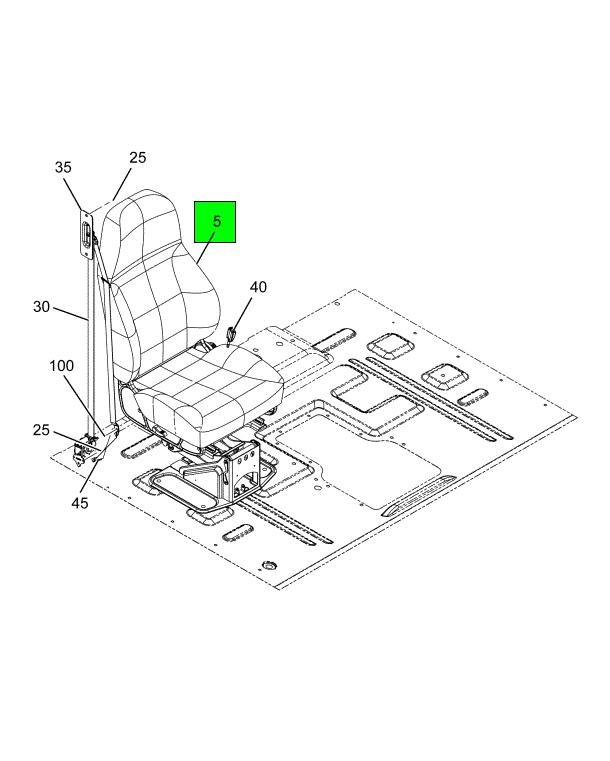

SEAT, PASSENGER NATL HIGH AIR SUSPENSION VINYL 3 LMBR INTERNATIONAL LOGO
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$839.95
$1,007.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
016-005-000
OEM Description
SEAT, PASSENGER NATL HIGH AIR SUSPENSION VINYL 3 LMBR INTERNATIONAL LOGO

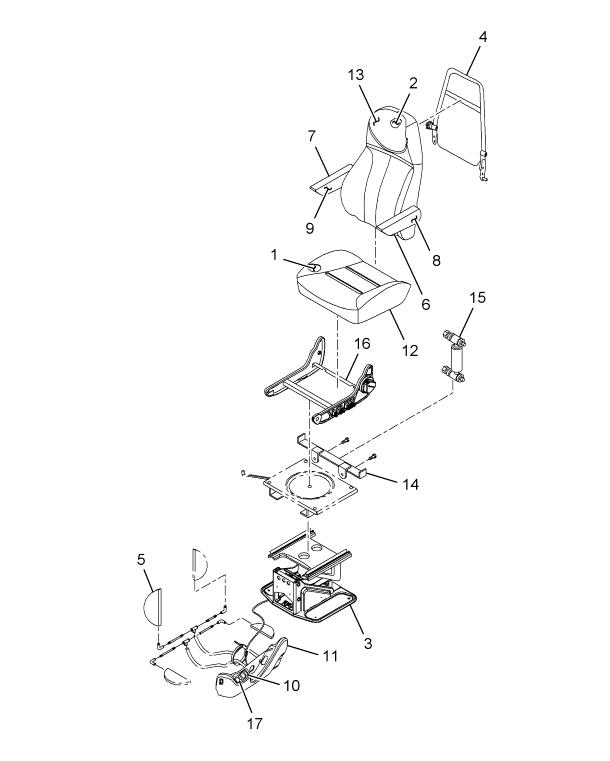

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2596028C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FR, SEAT HIGH BACK | 1 | 2596027C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM LEFT HAND | 1 | 2607311C1 |
| REST ARM RIGHT HAND | 1 | 2607312C1 |
CROSS REFERENCES
- NATL ST 50708.33BV121
- NATL ST 50708.33BV121
- NATL ST 5070833BV12
- NATL ST 5070833BV12
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
