3669154C94
SEAT, DRIVER, AIR SUSPENSION, LONESTAR CLOTH
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,099.95
$1,319.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, AIR SUSPENSION, LONESTAR CLOTH

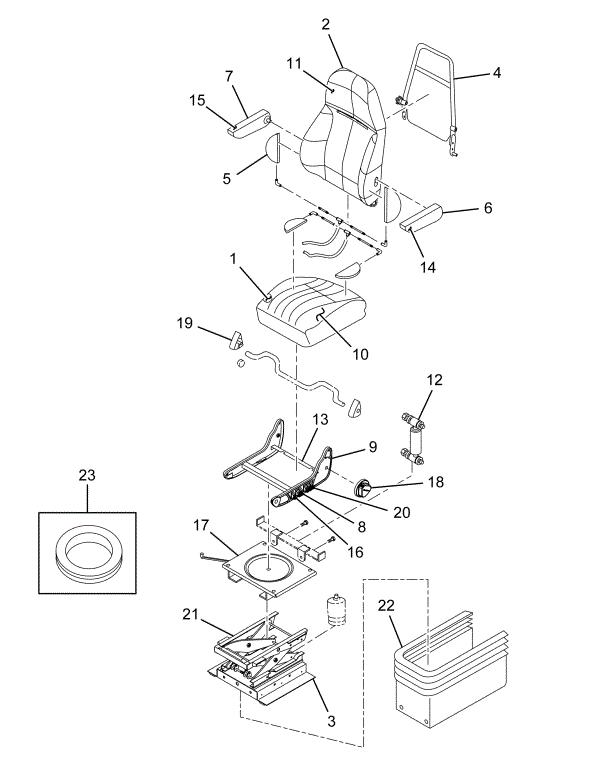

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT | 1 | 2607568C91 |
| COVER SEAT CUSHION | 1 | 2607570C1 |
| COVER BACK CUSHION | 1 | 2607571C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| FR, LOWER SEAT Y | 1 | 2597790C1 |
| COVER, ARMREST LEFT HAND | 1 | 2607347C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2607348C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| BASE, SWIVEL DRIVER | 1 | 2599748C1 |
| KNOB SEAT BACK RECLINE | 1 | 2516626C1 |
| KNOB SEAT CUSHING ADJUSTABLE FRONT AND REAR FRONT AND REAR | 1 | 2595133C1 |
| CUSHION, BACK INDV SEAT | 1 | 2607569C91 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| GROMMET, RUBBER | 1 | 2513626C1 |
| PEDESTAL SEAT | 1 | 2603334C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| REST ARM LEFT HAND | 1 | 2607345C1 |
| REST ARM RIGHT HAND | 1 | 2607346C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD ASSEMBLY, SEAT Y | 1 | 2597787C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
