3667191C92

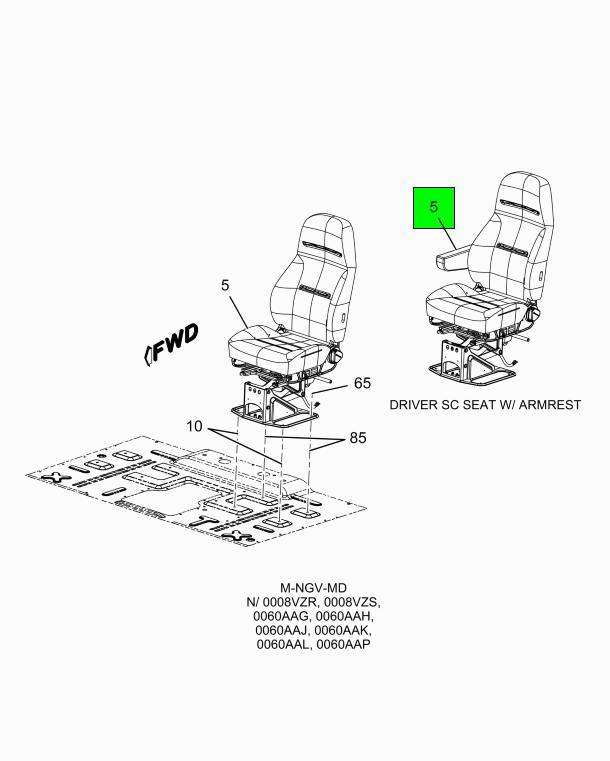

SEAT, DRIVER MID SC W/COMP VINYL NO LUMBAR W/ARMREST
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$599.95
$719.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER MID SC W/COMP VINYL NO LUMBAR W/ARMREST

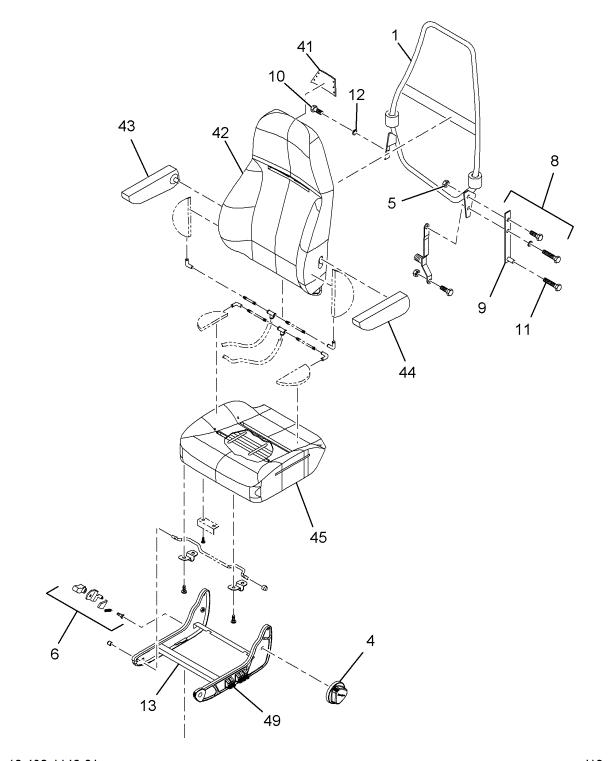

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT BACK MID BACK | 1 | 2505882C1 |
| BOLT SHOULDER .325 X.775 | 1 | 2606105C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| WASHER THREE WAVE SPRING WASHER | 6 | 2606104C1 |
| FR, SEAT LOWER | 1 | 2509209C91 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| TUBING- CLR POLYURETHANE .156ID | 1 | NS18002755 |
| TUBING-GRN POLYURETHANE .156ID | 1 | NS18002757 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2507148C91 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| RING, SNAP | 4 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| PAD, CRASH MID BACK SEAT | 1 | 2505881C1 |
| COVER BACK CUSHION | 1 | 2607382C1 |
| CUSHION BACK MID CHRCL VINYL | 1 | 2595001C92 |
| REST ARM RIGHT HAND | 1 | 2607559C1 |
| REST ARM LEFT HAND | 1 | 2607558C1 |
| COVER, SEAT CUSHION | 1 | 2607557C1 |
| CUSHION SEAT CHRL VINYL | 1 | 2594999C92 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| VALVE, AIR LEVEL SEAT ELECTRIC PADDLE | 1 | 2508945C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
