3666563C93
SEAT ,PSGR AIR SEAT W/HEAT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,149.95
$1,379.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT ,PSGR AIR SEAT W/HEAT

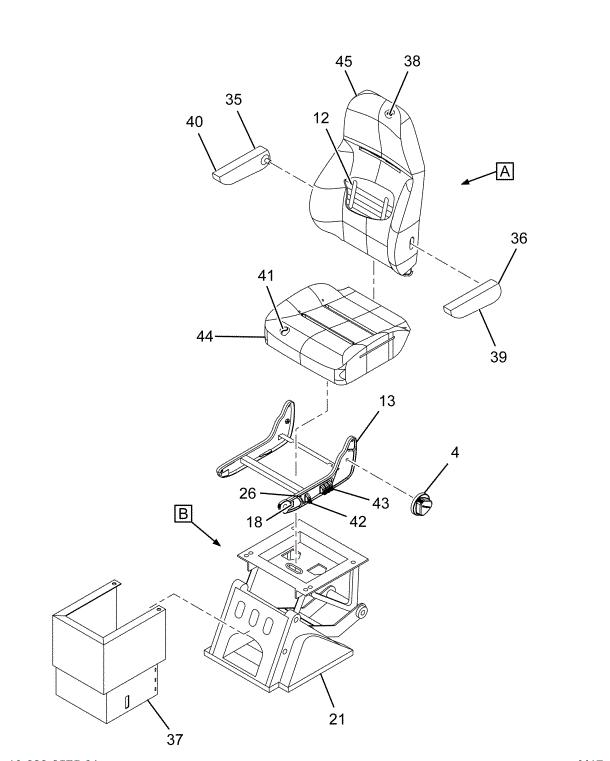

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FRAME, SEAT BACK | 1 | 2597791C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| FR, SEAT LOWER | 1 | 2596224C1 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| KIT, SEAT HEATER | 1 | 2590764C91 |
| KIT, SEAT ADJUSTER TRACK | 1 | 2502014C91 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502319C91 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| RING, SNAP | 4 | 544968R1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501751C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| REST ARM RIGHT HAND | 1 | 2607137C1 |
| REST ARM LEFT HAND | 1 | 2607136C1 |
| SKIRT, SEAT BASE, TAN | 1 | 2509098C91 |
| CUSHION, BACK CUSHION HIGH TAN C&V | 1 | 2595329C92 |
| COVER ARMREST LEFT HAND | 1 | 2606837C1 |
| COVER ARMREST RIGHT HAND | 1 | 2606838C1 |
| CUSHION, SEAT TAN CLTH AND VNYL | 1 | 2595328C92 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER, SEAT CUSHION | 1 | 2607155C1 |
| COVER BACK CUSHION | 1 | 2607156C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
