3666555C92
SEAT,PSGR HI BACK, AIR, TAN CL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,099.95
$2,519.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER HIGH BACK, AIR, TAN CLOTH, SLEEPER
Weight
95.0004 lbs

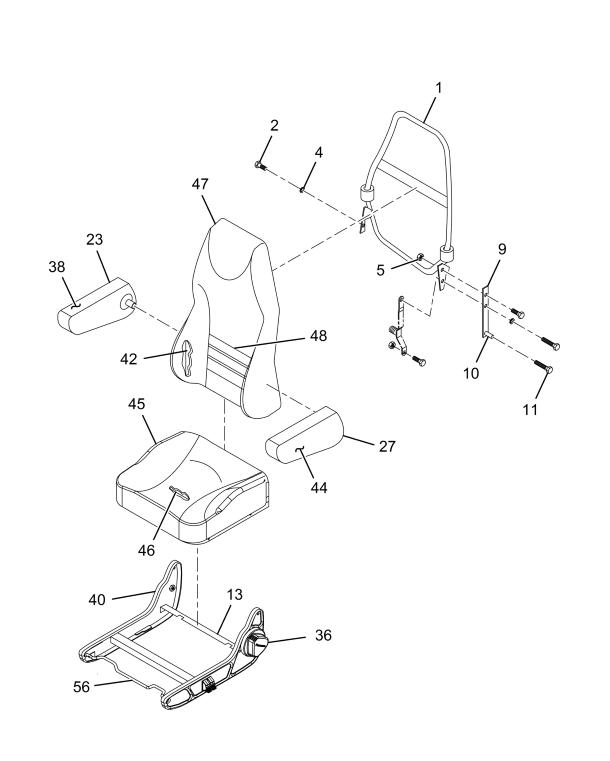

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, HIGH BACK SEAT | 1 | 2588954C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2596224C1 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502320C91 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2502316C91 |
| ARM, LOWER W/BUSHINGS | 1 | 2502317C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501751C1 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| TUBING-GRN POLYURETHANE .156ID | 1 | NS18002757 |
| TUBING- CLR POLYURETHANE .156ID | 1 | NS18002755 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| PEDESTAL, SEAT LOWER BASE | 1 | 2505983C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| PEDESTAL, SEAT UPPER BASE | 1 | 2502314C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| BASE, PASSENGER SEAT MOUNTING SWIVEL W/TAN HANDLE | 1 | 2509109C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
