3666553C92
SEAT, PASSENGER HIGH BACK, AIR, TAN CLOTH, SWIVEL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,199.95
$1,439.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER HIGH BACK, AIR, TAN CLOTH, SWIVEL
Weight
157.33 lbs

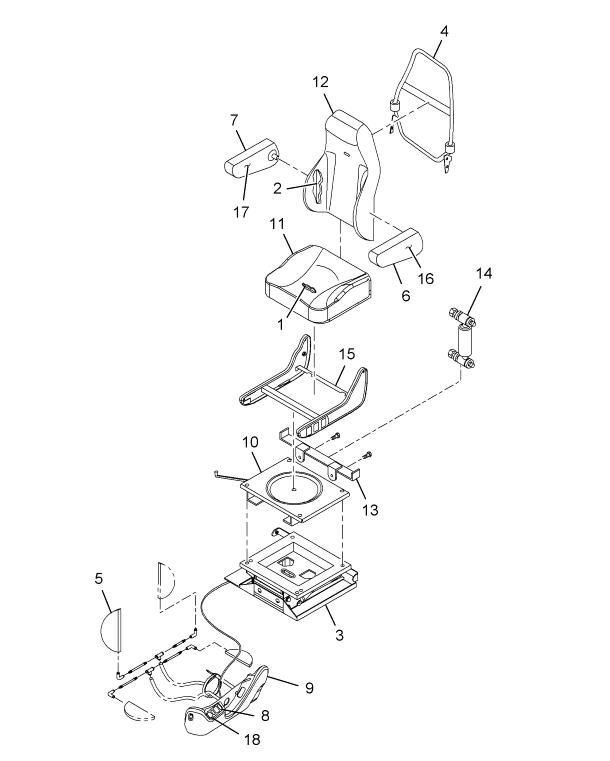

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE, PASSENGER SEAT MOUNTING SWIVEL W/TAN HANDLE | 1 | 2509109C1 |
| COVER SEAT CUSHION TAN | 1 | 2598002C2 |
| COVER BACK CUSHION | 1 | 2598003C2 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501751C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2595325C1 |
| COVER ARMREST LEFT HAND | 1 | 2606837C1 |
| COVER ARMREST RIGHT HAND | 1 | 2606838C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502320C91 |
| FR, HIGH BACK SEAT | 1 | 2588954C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM LEFT HAND | 1 | 2607136C1 |
| ARMREST TAN VINYL LEFT HAND | 1 | 2509101C1 |
| REST ARM RIGHT HAND | 1 | 2607137C1 |
| ARMREST TAN VINYL RIGHT HAND | 1 | 2509102C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
