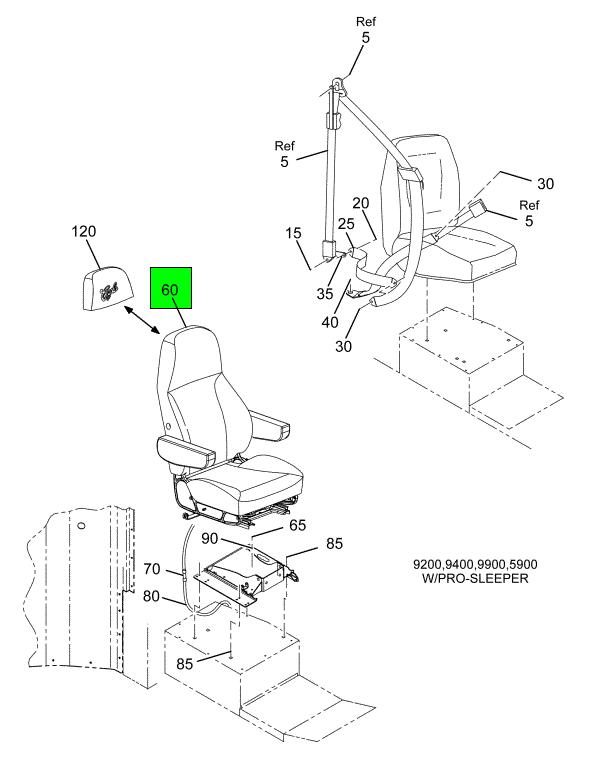

3666553C91
SEAT, PASSENGER HIGH BACK AIR TAN CLOTH SWIVEL
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER HIGH BACK AIR TAN CLOTH SWIVEL

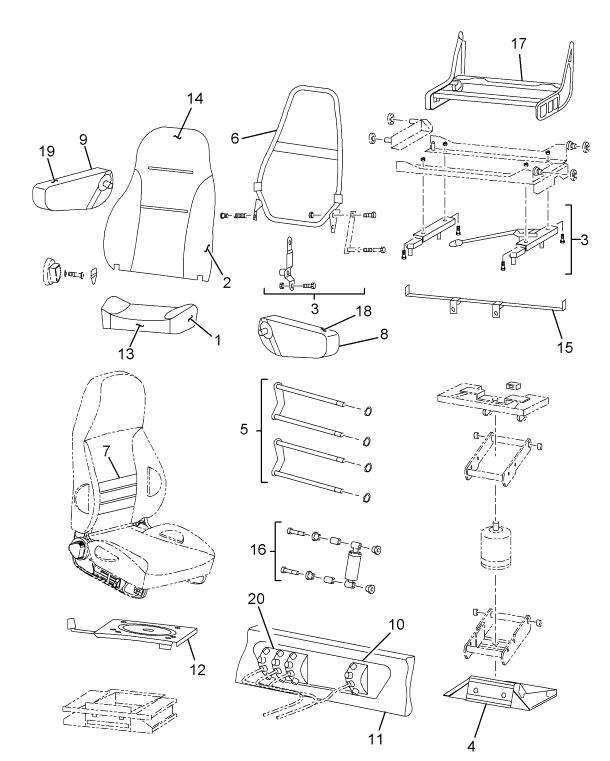

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| BASE, PASSENGER SEAT MOUNTING SWIVEL W/TAN HANDLE | 1 | 2509109C1 |
| COVER, CUSHION SEAT TAN | 1 | 2598002C1 |
| COVER, CUSHION BACK TAN | 1 | 2598003C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501751C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2595325C1 |
| COVER, ARMREST LEFT | 1 | 2597944C1 |
| COVER, ARMREST RIGHT | 1 | 2597945C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502320C91 |
| FR, HIGH BACK SEAT | 1 | 2588954C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| ARMREST TAN VINYL LEFT HAND | 1 | 2509101C1 |
| ARMREST TAN VINYL RIGHT HAND | 1 | 2509102C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
