3666552C92

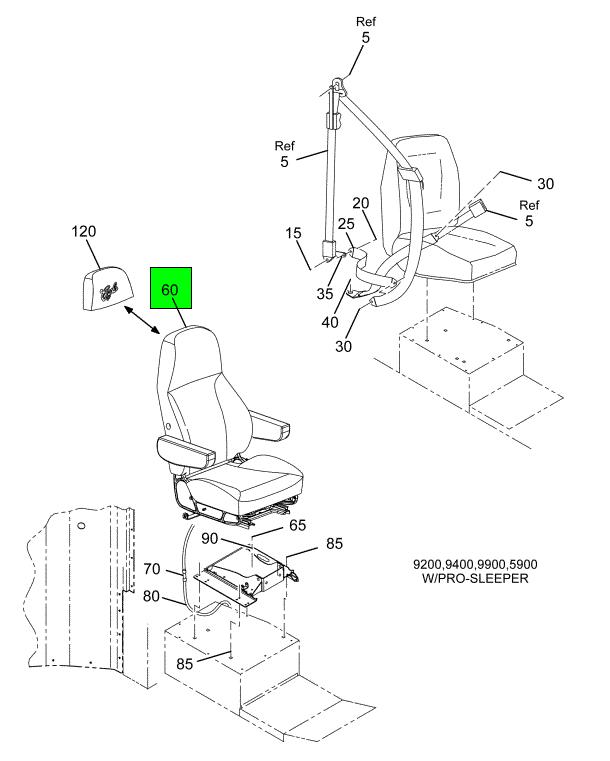

SEAT, PASSENGER HIGH BACK, AIR, TAN CLOTH, SLEEPER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,149.95
$1,379.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER HIGH BACK, AIR, TAN CLOTH, SLEEPER
Weight
84.18 lbs

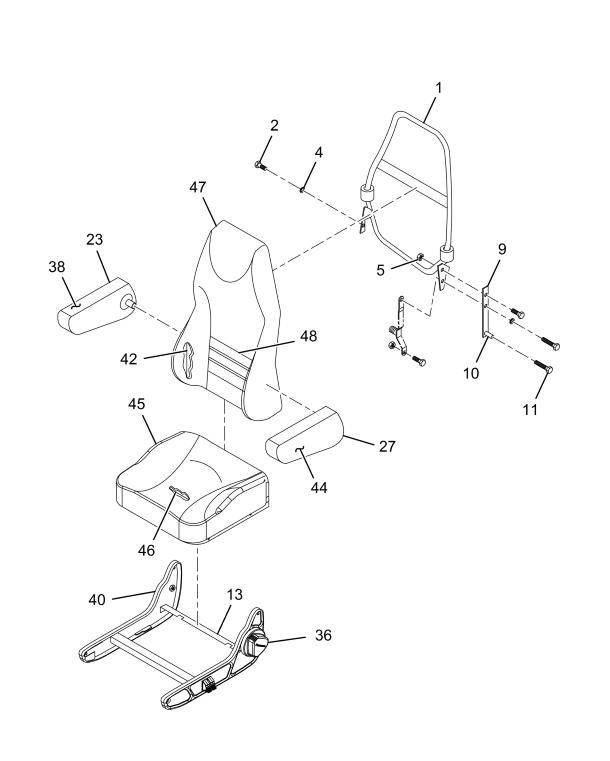

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, HIGH BACK SEAT | 1 | 2588939C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2595325C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2585791C1 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502319C91 |
| REST ARM RIGHT HAND | 1 | 2607137C1 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2502316C91 |
| ARM, LOWER W/BUSHINGS | 1 | 2502317C91 |
| REST ARM LEFT HAND | 1 | 2607136C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501751C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| PEDESTAL, SEAT UPPER BASE | 1 | 2502314C91 |
| PEDESTAL, SEAT LOWER BASE | 1 | 2505983C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
