3663917C92
SEAT, PASSENGER AIR GRAY W/BLACK INSERTS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,399.95
$1,679.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, PASSENGER AIR GRAY W/BLACK INSERTS

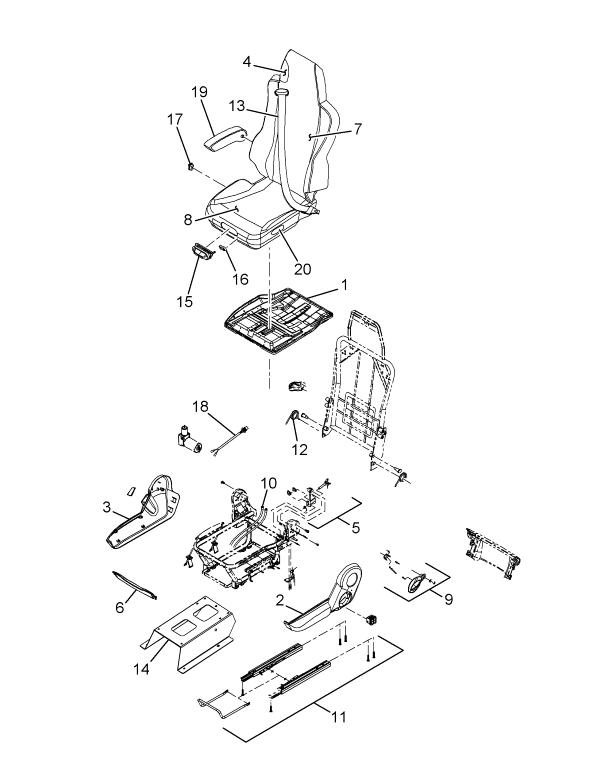

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SEAT, PAN | 1 | 2597703C1 |
| SEAT, GUIDE CUSHION PAN | 1 | 2597704C1 |
| CABLE ,BOWDEN TILT | 1 | 2597707C1 |
| ADJUSTER, SEAT FORE AND AFT LEFT | 1 | 2596768C1 |
| SPRINGS, FR SEAT BACK | 1 | 2596771C1 |
| BELT, SEAT ASSEMBLY | 1 | 2598666C1 |
| RISER, SUPPORT SEAT RIGHT | 1 | 2598624C1 |
| RISER, SUPPORT SEAT LEFT | 1 | 2598625C1 |
| HANDLE, TILT SEAT | 1 | 2597706C1 |
| SEAT ASSEMBLY, ISOLATOR | 1 | 2597708C1 |
| SEAT, CABLE BOWDEN | 1 | 2597709C1 |
| COVER, SIDE SEAT RIGHT | 1 | 2598664C1 |
| PAD CUSHION SEAT PLUS PADS | 1 | 2598405C1 |
| COVER, SIDE SEAT LEFT | 1 | 2598662C1 |
| PAD BACKREST FOAM AND PLUS PAD K | 1 | 2598404C1 |
| SEAT ASSEMBLY, RECLINER DUAL LOCKING | 1 | 2597696C1 |
| COVER, SEAT FRONT | 1 | 2597705C1 |
| COVER BACK TRIM ASSEMBLY | 1 | 2598407C1 |
| COVER SEAT TRIM COVER AND CLIPS | 1 | 2598408C1 |
| BRACKET ASSEMBLY, STRUCTURE SEAT | 1 | 2598665C1 |
| SEAT, ANGLE ADJUSTING | 1 | 2597697C1 |
| SPRING, SET AIR RETROFIT | 1 | 2597698C1 |
| SEAT SET OF WEAR PARTS | 1 | 2597699C1 |
| HANDLE, RECLINER SEAT Y | 1 | 2596765C1 |
CROSS REFERENCES
- GRAMAG SA-VY-50000-S
- GRAMAG SA-VY-50000-S
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
