3662509C91
SEAT, DRIVER NAT 2000 HIGH BACK, AIR, BLACK AND TAN LEATH
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER NAT 2000 HIGH BACK, AIR, BLACK AND TAN LEATH

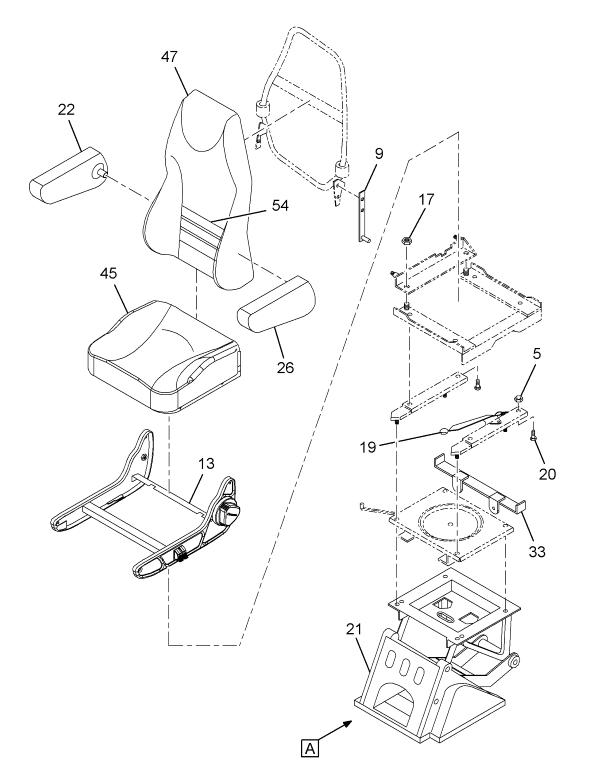

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, LOWER SEAT | 1 | 2586959C1 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 1 | NS22815201 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 1 | 2502303C1 |
| PEDESTAL, SEAT | 1 | 2505381C91 |
| REST, ARM CLASSIC BLACK LEFT HAND | 1 | 2592871C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
| REST, ARM CLASSIC BLACK RIGHT HAND | 1 | 2592872C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 1 | 544968R1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2505859C1 |
| BUSHING, SEAT ARM SPACER | 1 | 2505470C1 |
| ELBOW, 90 DEGREE BARBED | 1 | NS18002753 |
| CUSHION, SEAT HIGH DEMAND CLASSIC BLACK | 1 | 2592869C91 |
| CUSHION, HIGH BACK LEATHER AND VINYL BLACK | 1 | 2596182C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| COVER, SEAT SKIRT | 1 | 2516456C1 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
