3662371C92
SEAT, PASSENGER VINYL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$889.95
$1,067.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT PASS HI SC W/CMPR VN W/AR

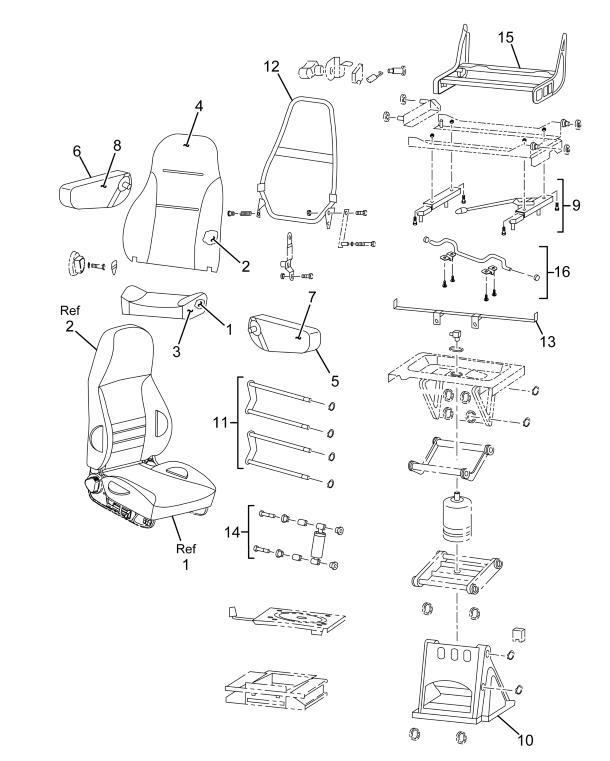

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2585431C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2596196C1 |
| COVER, BACK SEAT CHARCOAL | 1 | 2597998C1 |
| COVER, BACK CUSHION CHARCOAL | 1 | 2597999C1 |
| REST, ARM LEFT | 1 | 2607311C1 |
| REST, ARM LEFT | 1 | 2595002C1 |
| REST, ARM RIGHT HAND RIGHT | 1 | 2607312C1 |
| REST, ARM RIGHT HAND RIGHT | 1 | 2595003C1 |
| COVER, ARMREST LEFT | 1 | 2598000C1 |
| COVER, ARMREST RIGHT | 1 | 2598001C1 |
| VALVE, AIR LEVEL SEAT ELECTRIC PADDLE | 1 | 2508945C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
