3662370C93
SEAT, PASSENGER HIGH SC W/COMP VINYL MECHANISM LUMBAR 07 TYPE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,099.95
$1,319.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT, PASSENGER HIGH SC W/COMP VINYL MECHANISM LUMBAR 07 TYPE

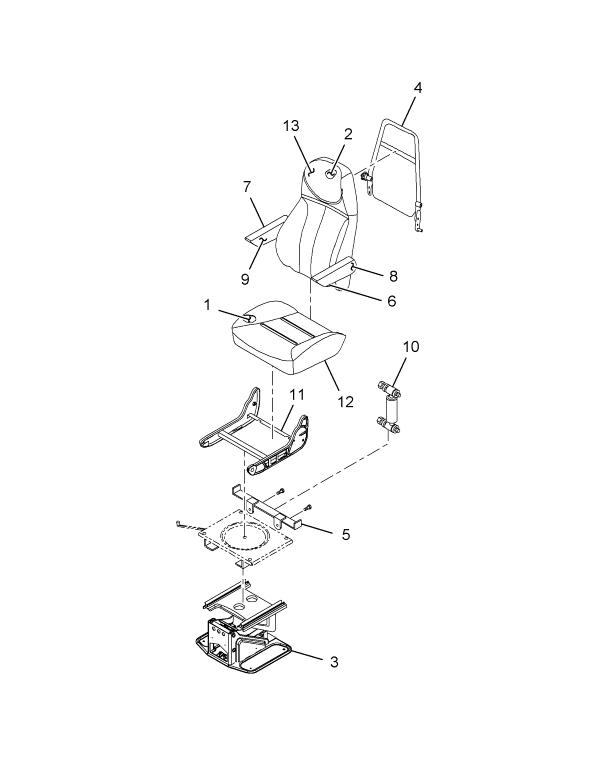

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2596196C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2585431C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| REST, ARM LEFT | 1 | 2607311C1 |
| REST, ARM | 1 | 2607142C1 |
| REST, ARM LEFT | 1 | 2595002C1 |
| REST ARM RIGHT HAND | 1 | 2607143C1 |
| REST, ARM RIGHT HAND RIGHT | 1 | 2607312C1 |
| REST, ARM RIGHT HAND RIGHT | 1 | 2595003C1 |
CROSS REFERENCES
- NATL ST 50550.30A00C1
- NATL ST 50550.30A00C1
- NATL ST 5055030A00C
- NATL ST 5055030A00C
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
