3627797C91
SEAT, DRIVERS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,249.95
$1,499.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, DRIVERS

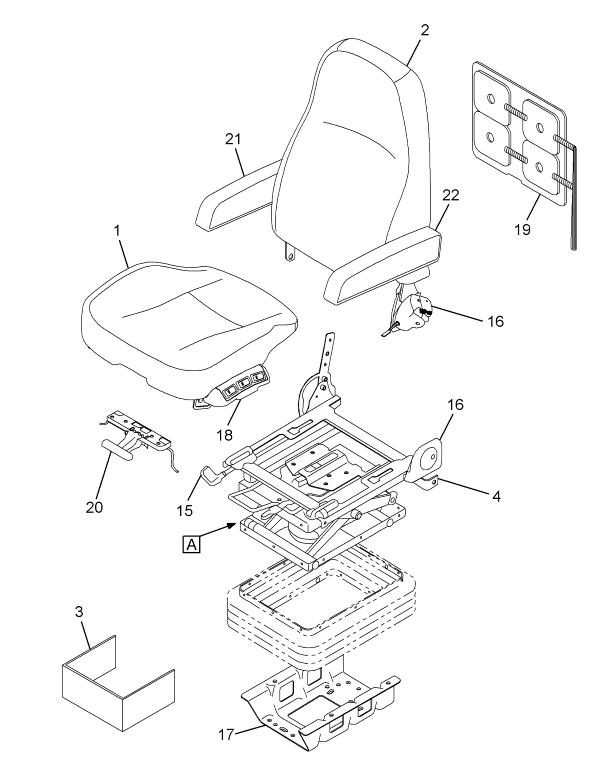

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT | 1 | 2590160C91 |
| PLATE, COVER | 1 | 2593694C1 |
| CUSHION, SEAT BACK | 1 | 2590161C91 |
| REST, ARM TAN RIGHT HAND | 1 | 2593695C1 |
| ARMREST TAN LEFT | 1 | 2594625C1 |
| PEDESTAL, SEAT | 1 | 2590131C91 |
| SPRING, AIR SEAT | 1 | 2503317C1 |
| VALVE, SUSPENSION WITH GRAY SWITCH | 1 | 2593692C1 |
| VALVE, LUMBAR WITH BLACK SWITCH | 1 | 2593693C1 |
| SHAFT, BEARING SUSPENSION SEAT | 1 | 2593691C1 |
CROSS REFERENCES
- SEARS M 235214FBSN
- SEARS M 235214FBSN
- SEARS M 235214FBSNNN
- SEARS M 235214FBSNNN
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
