3627566C92
SEAT DRIVER MID AIR SUSP VINY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$489.95
$587.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER MID AIR SUSPENSION VINYL NO LUMBER WITH ARMREST

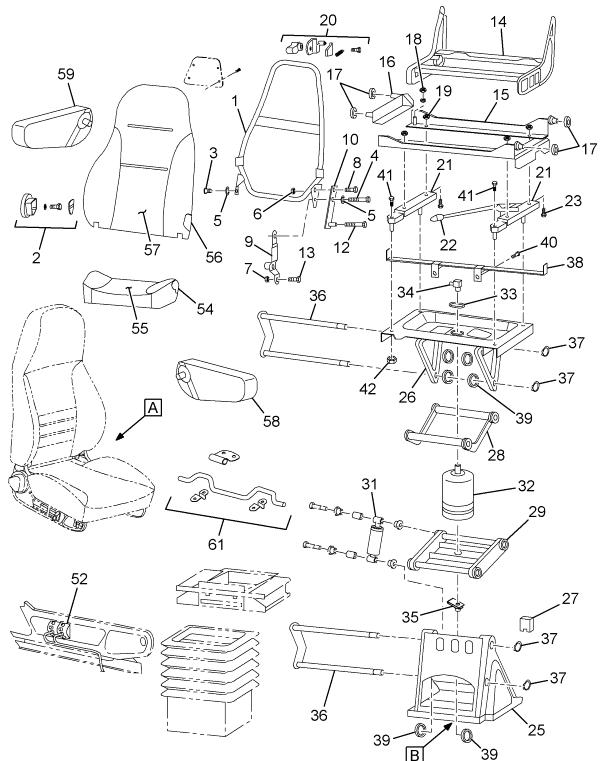

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT BACK MID | 1 | 2590611C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2596207C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2585791C1 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| REST, ARM VINYL CHARCOAL LEFT HAND | 1 | 2607764C1 |
| REST, ARM VINYL CHARCOAL LEFT HAND | 1 | 2596218C1 |
| ARMREST VINYL CHARCOAL RIGHT | 1 | 2607765C1 |
| ARMREST VINYL CHARCOAL RIGHT | 1 | 2596219C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
