3626701C91
SEAT OCCUPANT NATIONAL MID BA
Navistar International®
UNAVAILABLE
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVERS MID-BACK CLOTH

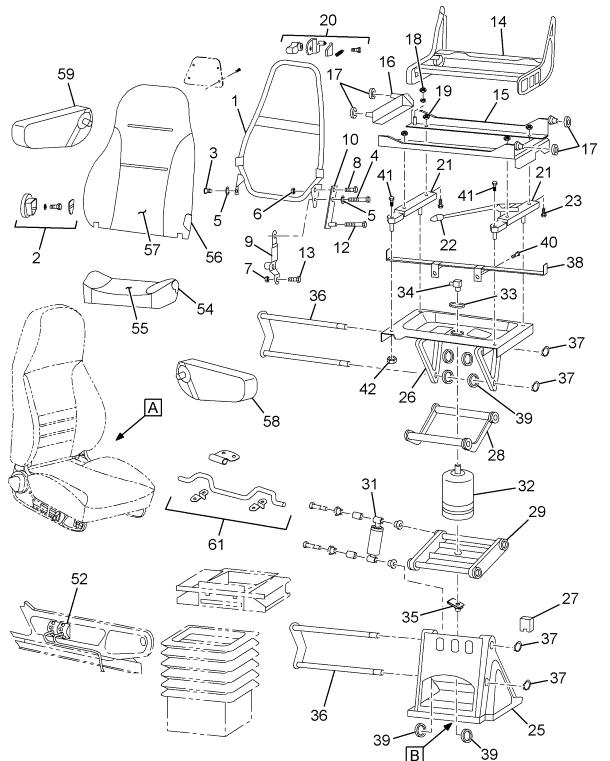

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT BACK MID | 1 | 2590611C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2596207C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2585791C1 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| ARMREST GRAY VINYL LEFT HAND | 1 | 3544821C1 |
| ARMREST GRAY VINYL RIGHT HAND | 1 | 3544818C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
