3624384C95

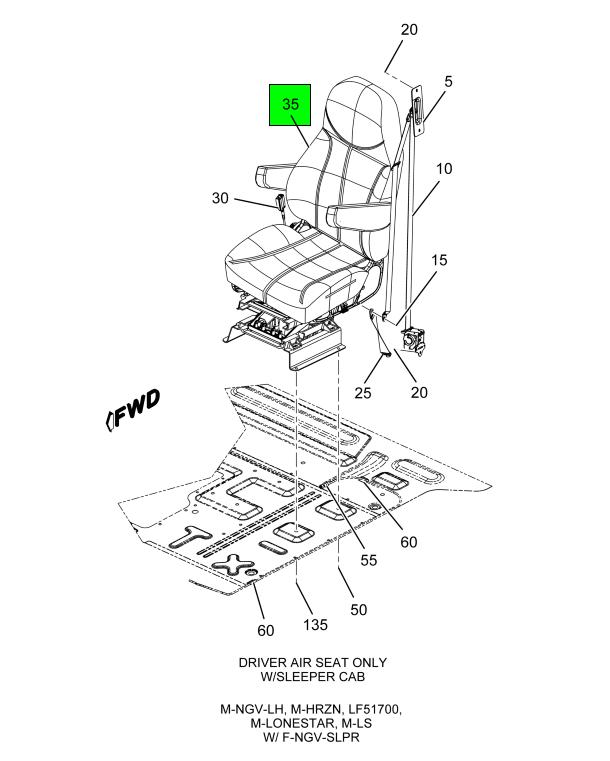

SEAT, DRIVER, SLEEPER, AIR ,CLOTH, RED, NO SWVL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,899.95
$2,279.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.

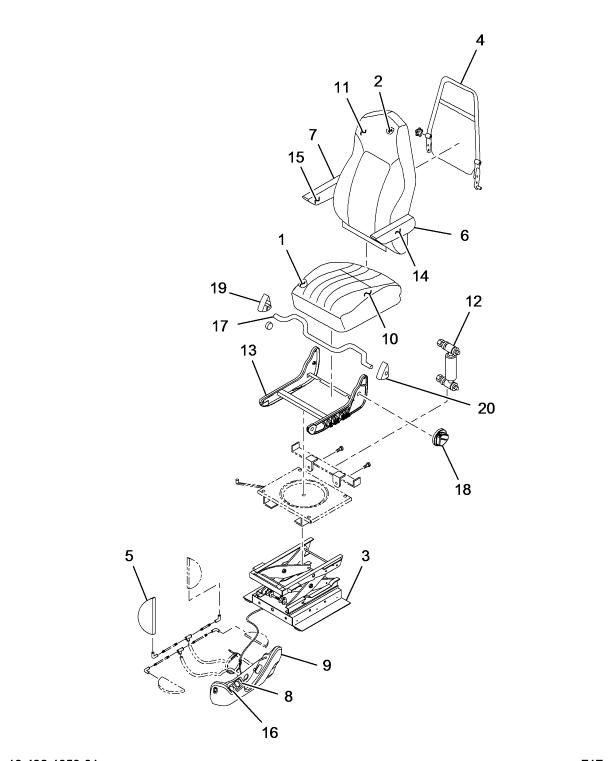

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT RED BRICK CLOTH AND VINYL | 1 | 2607805C91 |
| COVER SEAT CUSHION RED BRICK CLOTH AND VINYL | 1 | 2607807C1 |
| COVER BACK CUSHION RED BRICK CLOTH AND VINYL | 1 | 2607796C1 |
| ABSORBER, SHOCK ABSORBER, SEAT | 1 | 2614927C91 |
| FR, SEAT LOWER | 1 | 2594756C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2607774C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| HANDLE ,6 POSITIVE FRONT CUSHION ADJSTR | 1 | 385507C1 |
| KNOB, SEAT ADJUSTER | 1 | 583424C1 |
| KNOB SEAT CUSHING ADJUSTABLE FRONT AND REAR FRONT AND REAR | 1 | 2595133C1 |
| CUSHION BACK INDV SEAT | 1 | 2607811C91 |
| KNOB, SEAT CUSHION ADJUSTER KNOBS | 1 | 2606447C1 |
| PEDESTAL SEAT | 1 | 2603334C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| GUARD, FINGER | 1 | 2595131C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
