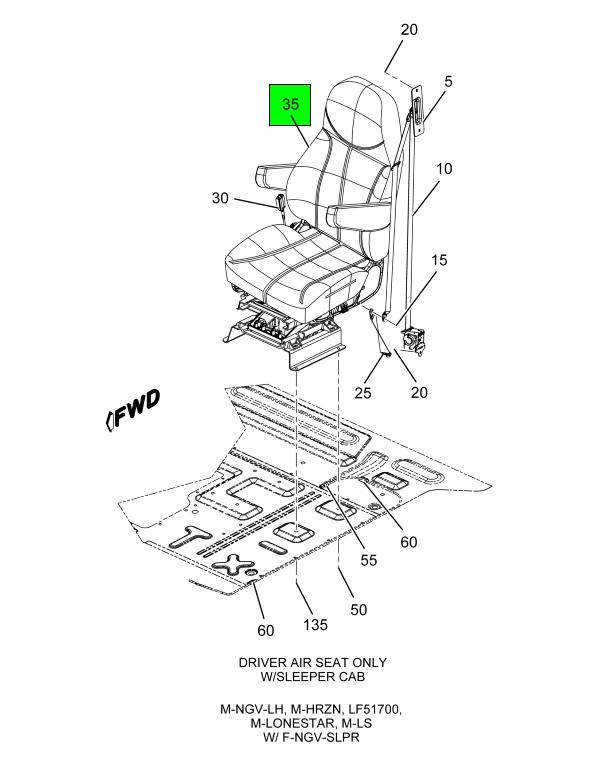

3624383C94
SEAT, DRIVER SLEEPER, AIR ,CLOTH, GRAY, NO SWVL, DUAL DAMP
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$839.95
$1,007.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER SLEEPER, AIR ,CLOTH, GRAY, NO SWVL, DUAL DAMP

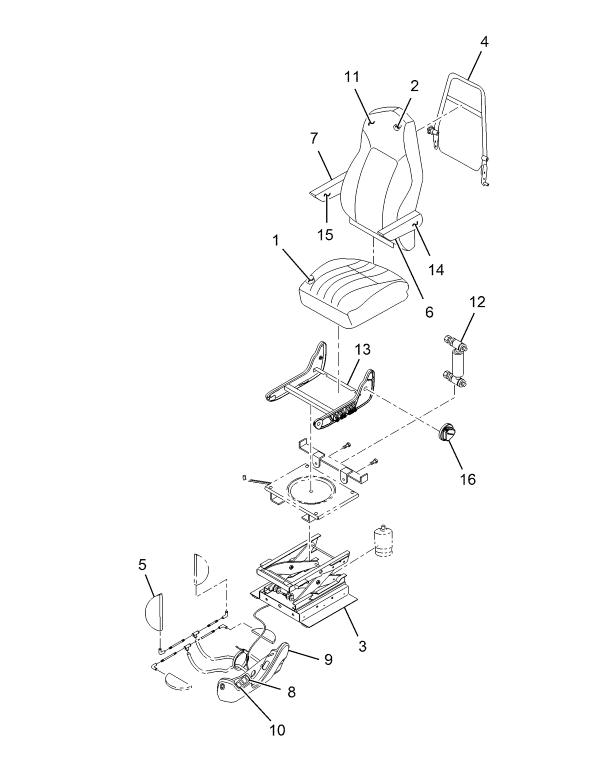

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT CHARCOAL GREY VINYL | 1 | 2607797C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER, SEAT CUSHION VINYL MID GRAY | 1 | 2607775C1 |
| COVER BACK CUSHION GRAY CLOTH AND VINYL | 1 | 2607792C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| FR, SEAT LOWER | 1 | 2594756C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2607774C1 |
| KNOB, RECLINE SEAT BACK | 1 | 2595135C1 |
| CUSHION BACK INDV SEAT | 1 | 2607809C91 |
| PEDESTAL SEAT | 1 | 2603334C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| COVER, KNOB SEAT RECLINE | 1 | 2595136C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
