3624377C95
SEAT, DRIVER, AIR, CLOTH, HIGH, GRAY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$849.95
$1,019.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, AIR, CLOTH, HIGH, GRAY
Weight
95.2 lbs

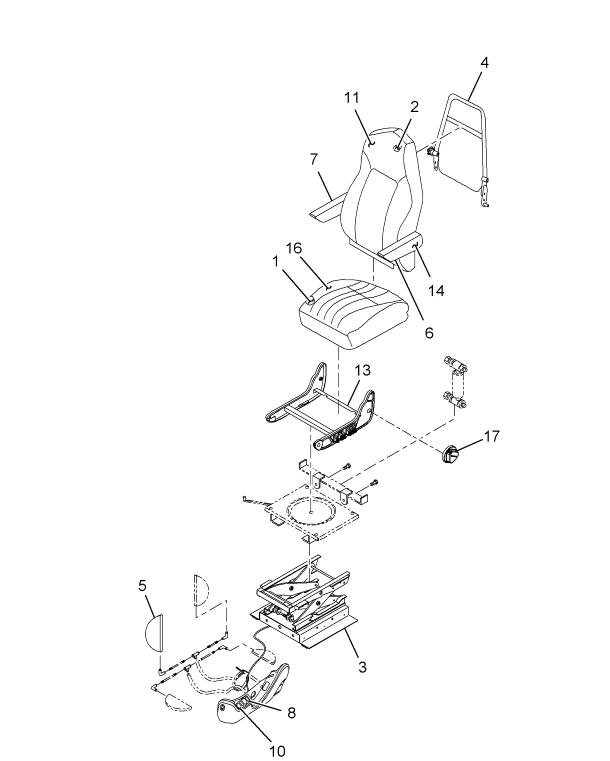

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT CHARCOAL GREY VINYL | 1 | 2607797C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER BACK CUSHION | 1 | 2607800C1 |
| FR, SEAT LOWER | 1 | 2594709C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER, SEAT CUSHION VINYL MID GRAY | 1 | 2607775C1 |
| KNOB, RECLINE SEAT BACK | 1 | 2595135C1 |
| CUSHION BACK INDV SEAT | 1 | 2607798C91 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| COVER, KNOB SEAT RECLINE | 1 | 2595136C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
