3615565C92

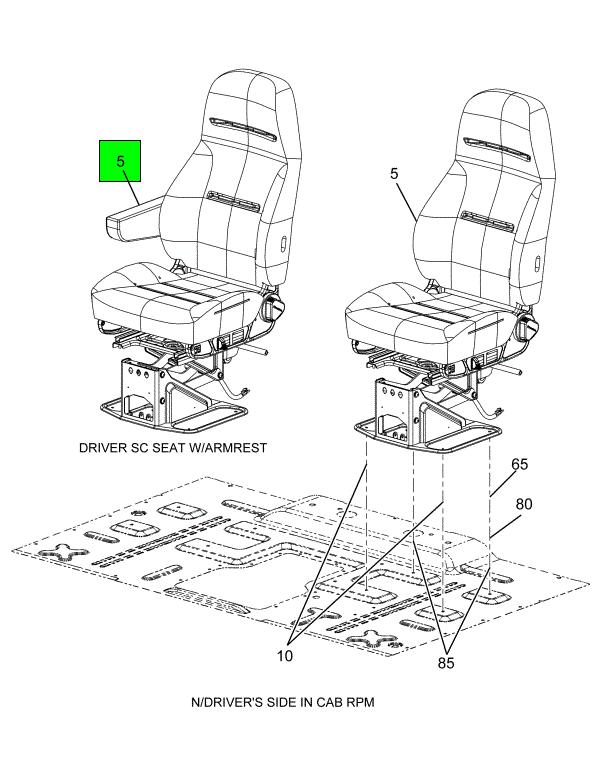

SEAT, DRIVER HIGH SC W/COMP CLOTH MECHANISM LUM W/ARMREST
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,649.95
$1,979.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH SC W/COMP CLOTH MECHANISM LUM W/ARMREST
Weight
89.19 lbs

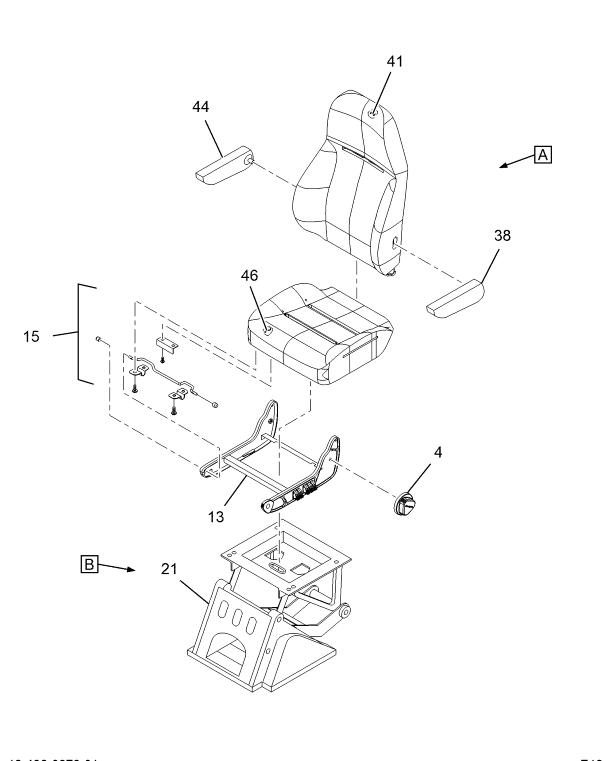

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT BACK HIGH BACK | 1 | 2585431C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2596196C1 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 1 | 1685465C1 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 1 | NS22815201 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
| VALVE, AIR LEVEL SEAT ELECTRIC PADDLE | 1 | 2508945C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, 90 DEGREE BARBED | 1 | NS18002753 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| RING, SNAP | 1 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 1 | 2505470C1 |
| REST ARM LH | 1 | 2606972C1 |
| COVER ARMREST LH | 1 | 2606974C1 |
| CUSHION, HIGH BACK CLOTH/VINYL CHARCOAL | 1 | 2596197C91 |
| COVER ARMREST RIGHT HAND | 1 | 2606975C1 |
| REST ARM RIGHT HAND | 1 | 2606973C1 |
| CUSHION, SEAT CHARCOAL CLOTH/VINYL | 1 | 2595485C91 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
