3615550C92
SEAT DRIVER HI AIR SUSP VINYL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$879.95
$1,055.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVERS HIGH AIR SUSPENSION VINYL
Weight
106.9992 lbs

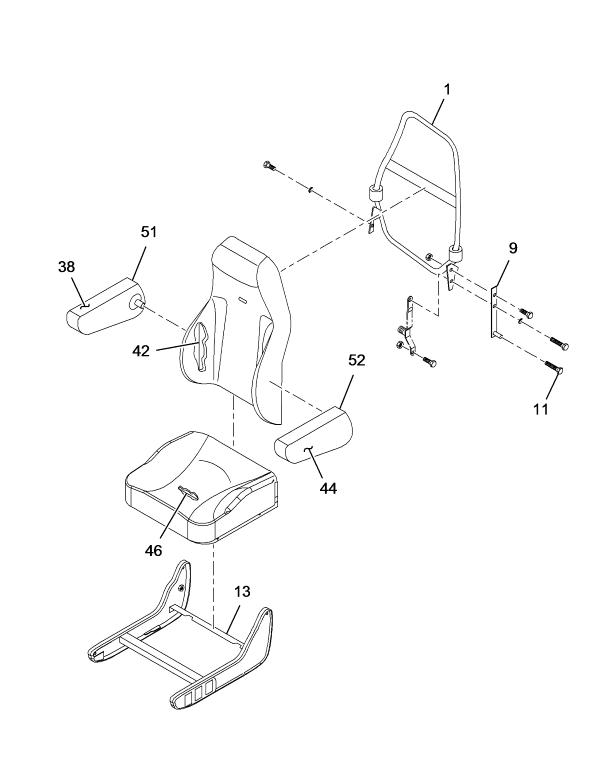

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FRAME, SEAT BACK | 1 | 2597791C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 1 | 1685465C1 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 1 | NS22815201 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 1 | 2502303C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 1 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 1 | 2505470C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| COVER, ARMREST RIGHT | 1 | 2598022C1 |
| ELBOW, 90 DEGREE BARBED | 1 | NS18002753 |
| CUSHION, HIGH-BACK CHARCOAL VINYL | 1 | 2595317C91 |
| COVER, ARMREST LEFT | 1 | 2607773C1 |
| COVER, ARMREST LEFT | 1 | 2598021C1 |
| CUSHION, SEAT CHARCOAL VINYL | 1 | 2594999C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| KIT, SEAT BASE COVER AND SHROUD BLACK | 1 | 2508535C91 |
| REST ARM RIGHT HAND | 1 | 2606973C1 |
| REST ARM LH | 1 | 2606972C1 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
