3615543C91
SEAT DRIVER HI AIR SUSP CLOTH
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$879.95
$1,055.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH BACK AIR SUSPENSION CLOTH
Weight
89.9998 lbs

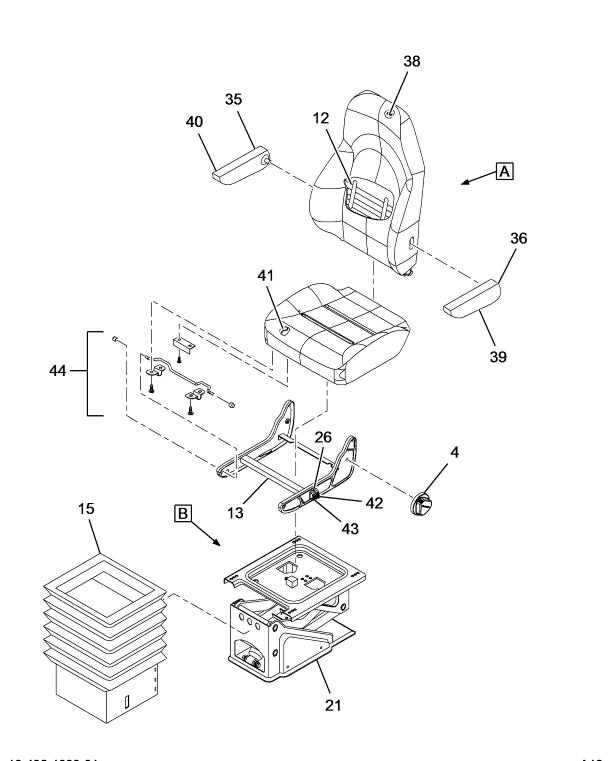

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FRAME, SEAT BACK | 1 | 2597791C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 1 | 1685465C1 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 1 | NS22815201 |
| STUD, TRACK | 1 | 2502303C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, 90 DEGREE BARBED | 1 | NS18002753 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| RING, SNAP | 1 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 1 | 2505470C1 |
| REST ARM RIGHT HAND | 1 | 2606973C1 |
| REST ARM LH | 1 | 2606972C1 |
| CUSHION, BACK AIR LUMBAR CHARCOAL CLOTH | 1 | 2595486C91 |
| COVER ARMREST LH | 1 | 2606974C1 |
| COVER ARMREST RIGHT HAND | 1 | 2606975C1 |
| CUSHION, SEAT CHARCOAL CLOTH/VINYL | 1 | 2595485C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BASE, SEAT MOUNTING LOWER | 1 | 2592624C1 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
