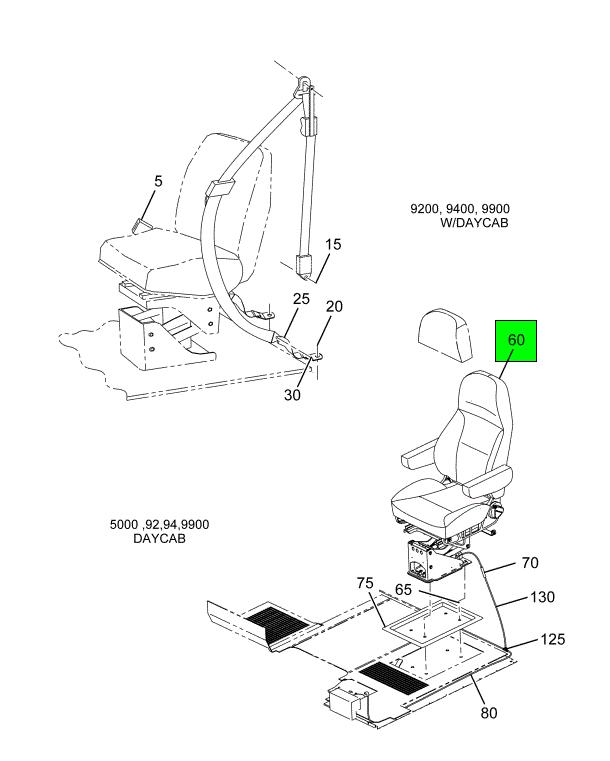

3610952C91
SEAT, DRIVERS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,199.95
$1,439.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT DRS BLUE CLOTH
Weight
109.23 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PLATE, COVER | 1 | 2593694C1 |
| REST, ARM BLUE CLOTH RIGHT HAND | 1 | 2593731C1 |
| REST, ARM BLUE CLOTH | 1 | 2593730C1 |
| PEDESTAL, SEAT | 1 | 2590131C91 |
| SPRING, AIR SEAT | 1 | 2503317C1 |
| VALVE, SUSPENSION WITH GRAY SWITCH | 1 | 2593692C1 |
| VALVE, LUMBAR WITH BLACK SWITCH | 1 | 2593693C1 |
| COVER, ARMREST | 1 | 2599550C1 |
| SHAFT, BEARING SUSPENSION SEAT | 1 | 2593691C1 |
CROSS REFERENCES
- SEARS M 35121HNBSN
- SEARS M 35121HNBSN
- SEARS M 35121HNBSNSN
- SEARS M 35121HNBSNSN
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
