3609940C97
SEAT, PASSENGER, SLEEPER, AIR, LTHR, RED, SWVL, BACK CYCLE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,249.95
$1,499.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, PASSENGER, SLEEPER, AIR, LTHR, RED, SWVL, BACK CYCLE
Weight
131.27 lbs

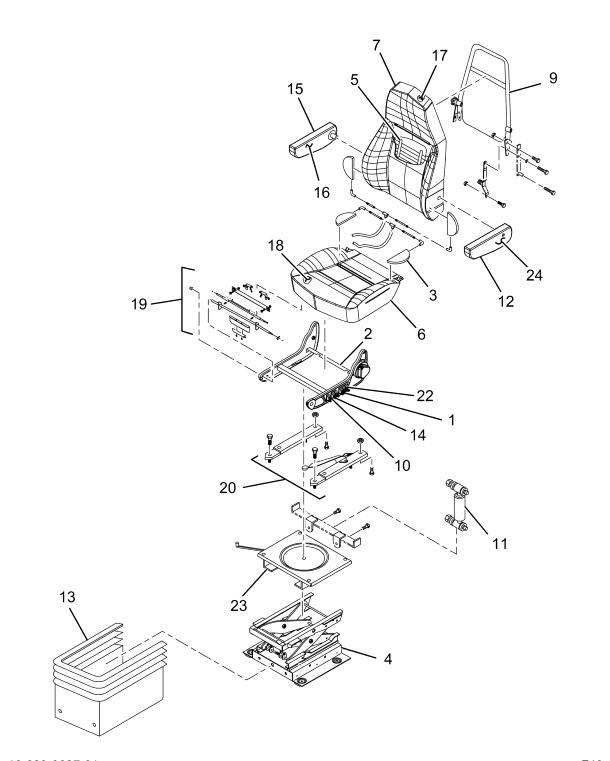

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD ASSEMBLY | 1 | 2594766C1 |
| ARMREST, UPHOLSTERED ARMREST LH | 1 | 2607764C1 |
| ARMREST, UPHOLSTERED ARMREST LH | 1 | 2513850C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| ARMREST COVER, RIGHT HAND GRAY | 1 | 2607774C1 |
| ARMREST COVER, RIGHT HAND GRAY | 1 | 2513859C1 |
| ARMREST, UPHOLSTERED ARMREST RIGHT HAND | 1 | 2607765C1 |
| ARMREST, UPHOLSTERED ARMREST RIGHT HAND | 1 | 2513851C1 |
| CUSHION BACK INDV SEAT | 1 | 2607835C91 |
| CUSHION SEAT INDV SEAT | 1 | 2607834C91 |
| FR, SEAT LOWER | 1 | 2594758C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| BASE, PASSENGER SEAT MOUNTING SWIVEL | 1 | 2594769C1 |
| ARMREST COVER, LH GRAY | 1 | 2607773C1 |
| ARMREST COVER, LH GRAY | 1 | 2513858C1 |
| KIT, AIR LUMBAR SEAT | 1 | 2509416C91 |
| PEDESTAL, SEAT | 1 | 2520325C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| COVER SEAT CUSHION | 1 | 2607836C1 |
| COVER, BACK CUSHION | 1 | 2607837C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
