3609811C96
SEAT, DRIVER SLEEPER, AIR ,LTHR, GRAY ,SWVL,CYCLER, DUAL DAMP
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,399.95
$1,679.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER SLEEPER, AIR ,LTHR, GRAY ,SWVL,CYCLER, DUAL DAMP

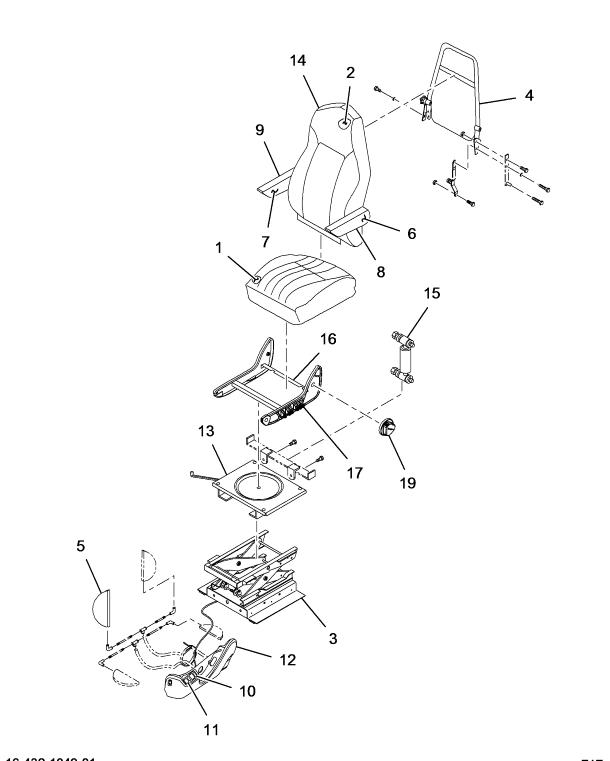

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT | 1 | 2607830C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| LUMBAR BAG AND HOSES | 1 | 2515922C91 |
| MANIFOLD ASSEMBLY | 1 | 2594766C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2594770C1 |
| COVER BACK CUSHION | 1 | 2607833C1 |
| COVER SEAT CUSHION | 1 | 2607832C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| FR, SEAT LOWER | 1 | 2594758C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| KNOB, RECLINE SEAT BACK | 1 | 2595135C1 |
| CUSHION BACK INDV SEAT | 1 | 2607831C91 |
| PEDESTAL SEAT | 1 | 2603334C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2607774C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
