3609810C95
SEAT, DRIVER SLEEPER, AIR ,CLOTH, BLUE ,SWVL, CYCLE, DUAL DAMP
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,149.95
$1,379.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER SLEEPER, AIR ,CLOTH, BLUE ,SWVL, CYCLE, DUAL DAMP

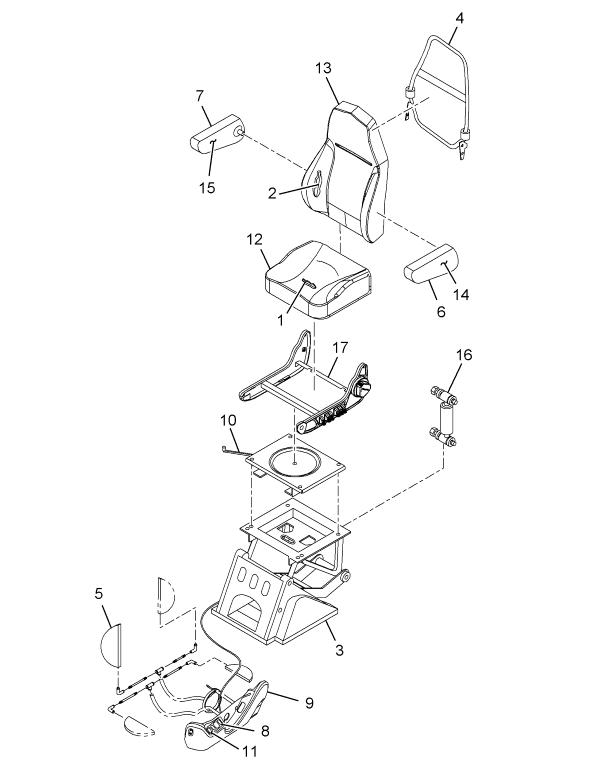

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Driver Seat Mounting Swivel Base | 1 | 2594770C1 |
| Low Pressure Air Gray Handle Valve | 1 | 2505476C1 |
| Shock Absorber Seat Absorber | 1 | 2594712C91 |
| Seat Lower Front | 1 | 2594758C1 |
| Pedestal Seat | 1 | 2603334C91 |
| Seat Back Frame | 1 | 2597791C1 |
| Support Assembly Air Lumbar | 1 | 2594761C1 |
| LIMBAR Assembly Seat Air Support | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| Rest Arm Left Hand | 1 | 2607764C1 |
| Rest Arm Right Hand | 1 | 2607765C1 |
| High Pressure Air Red Handle Valve | 1 | 2505475C1 |
| Seat Sensor Lumbar Cycler Switch | 1 | 2594768C1 |
| Manifold Assembly | 1 | 2594766C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
