3609808C96
SEAT, DRIVER, SLEEPER, AIR, CLOTH, GRAY, SWVL, BACKCYCLE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,349.95
$2,819.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.

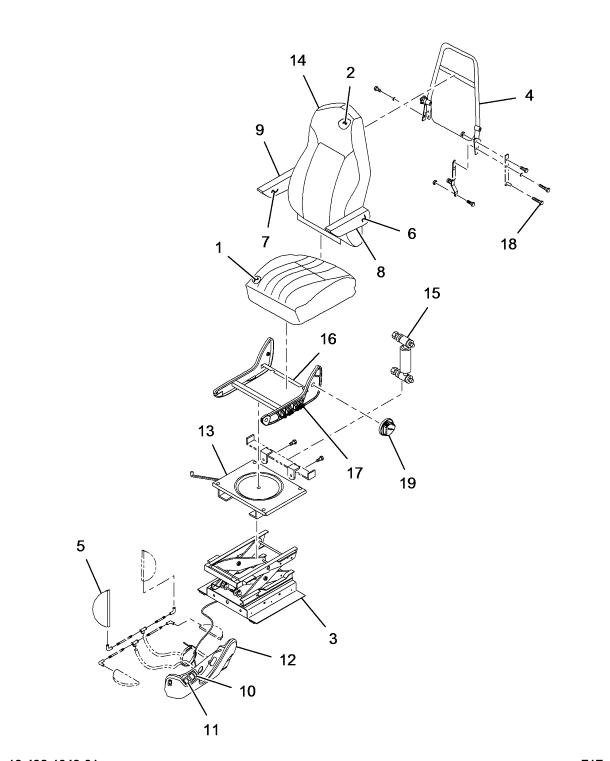

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT | 1 | 2607825C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| VALVE, CONTROL LUMBAR | 1 | 2600683C1 |
| MANIFOLD ASSEMBLY | 1 | 2594766C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2594770C1 |
| COVER BACK CUSHION GRAY CLOTH AND VINYL | 1 | 2607792C1 |
| COVER, SEAT CUSHION VINYL MID GRAY | 1 | 2607775C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| FR, SEAT LOWER | 1 | 2594758C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| KNOB, RECLINE SEAT BACK | 1 | 2595135C1 |
| CUSHION SEAT BACK CHARCOAL GRAY VINYL | 1 | 2607826C91 |
| PEDESTAL SEAT | 1 | 2603334C91 |
| PEDESTAL, SEAT | 1 | 2594754C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2607774C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
