3609806C96
SEAT, DRIVER, SLEEPER, AIR, MORDURA, GRAY, NO SWVL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$899.95
$1,079.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, SLEEPER, AIR, MORDURA, GRAY, NO SWVL
Weight
98.2 lbs

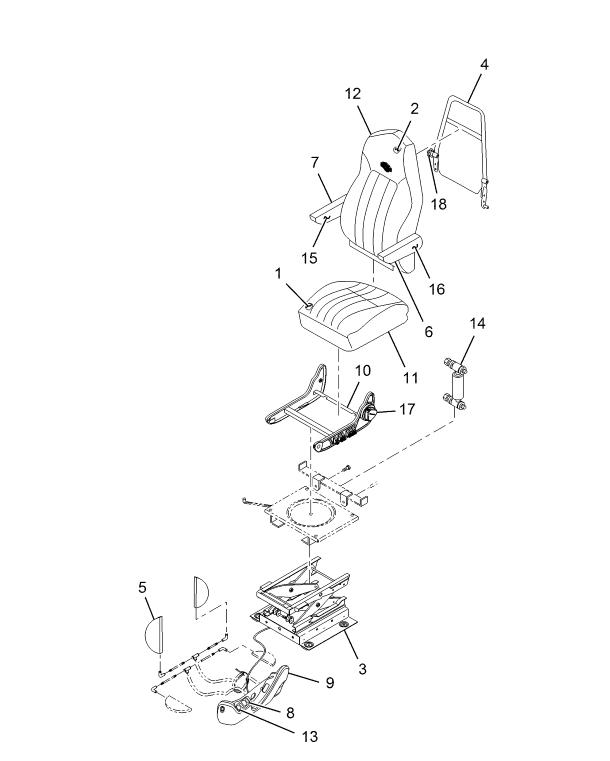

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT CHRCL MORDURA | 1 | 2607246C91 |
| FR, SEAT LOWER | 1 | 2594756C1 |
| COVER SEAT CUSHION CHRCL MORDURA | 1 | 2607247C1 |
| COVER BACK CUSHION HIGH CHRCL MORDU | 1 | 2607248C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| COVER ARMREST RIGHT HAND | 1 | 2607371C1 |
| COVER ARMREST LEFT HAND | 1 | 2607370C1 |
| KNOB, RECLINE SEAT BACK | 1 | 2595135C1 |
| KNOB, TRACK TO BASE | 1 | 2516457C1 |
| CUSHION BACK HIGH CHRCL MORDURA | 1 | 2607245C91 |
| PEDESTAL SEAT | 1 | 2603335C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| ARMREST AND COVER- GRAY LEFT HAND | 1 | 2607238C1 |
| ARMREST AND COVER, GRAY RIGHT HAND | 1 | 2607239C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
