3609788C96
SEAT, DRIVER, DAYCAB, AIR, MORDURA, HIGH, GRAY, 6 POSITIVE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$839.95
$1,007.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.

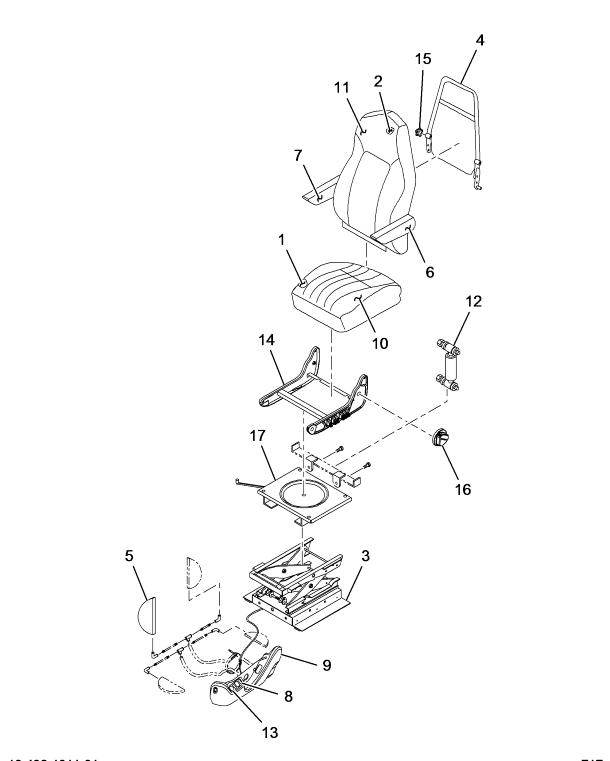

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT CHRCL MORDURA | 1 | 2607246C91 |
| COVER SEAT CUSHION CHRCL MORDURA | 1 | 2607247C1 |
| COVER BACK CUSHION | 1 | 2607815C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| FR, SEAT LOWER | 1 | 2594709C1 |
| KNOB, SEAT LUMBAR ADJUSTER | 1 | 1677236C1 |
| KNOB, RECLINE SEAT BACK | 1 | 2595135C1 |
| BASE, SWIVEL DRIVER | 1 | 2599748C1 |
| CUSHION BACK INDV SEAT | 1 | 2607814C91 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| COVER ARMREST LH | 1 | 2607240C1 |
| ARMREST AND COVER- GRAY LEFT HAND | 1 | 2607238C1 |
| ARMREST AND COVER, GRAY RIGHT HAND | 1 | 2607239C1 |
| COVER ARMREST RIGHT HAND | 1 | 2607241C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
