3609787C96
SEAT, DRIVER, DAYCAB, AIR, CLOTH, HIGH, BLUE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$739.95
$887.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, DRIVER, DAYCAB, AIR, CLOTH, HIGH, BLUE

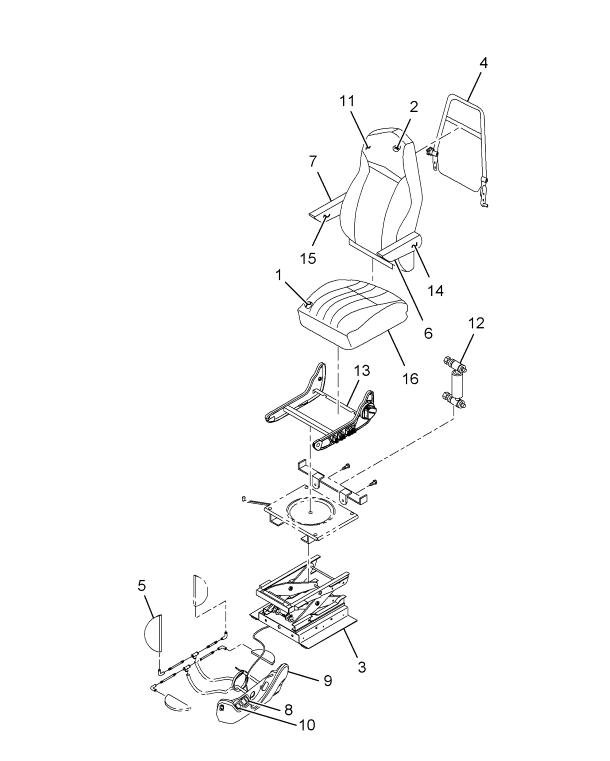

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT | 1 | 2607801C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER BACK CUSHION | 1 | 2607804C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| FR, SEAT LOWER | 1 | 2594709C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2607774C1 |
| COVER SEAT CUSHION | 1 | 2607803C1 |
| CUSHION BACK INDV SEAT | 1 | 2607802C91 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| KIT SEAT ADJUSTER | 1 | 2607344C91 |
| KIT, TRACK SEAT ADJUSTING | 1 | 2594719C1 |
| KIT SEAT RISER SHRD AND BELLOWS | 1 | 2609640C91 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
