3607753C91
SEAT, DRIVERS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,499.95
$1,799.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-027-003
OEM Description
SEAT DRS HI VN W/LOGO ON HDRST
Weight
74.15 lbs

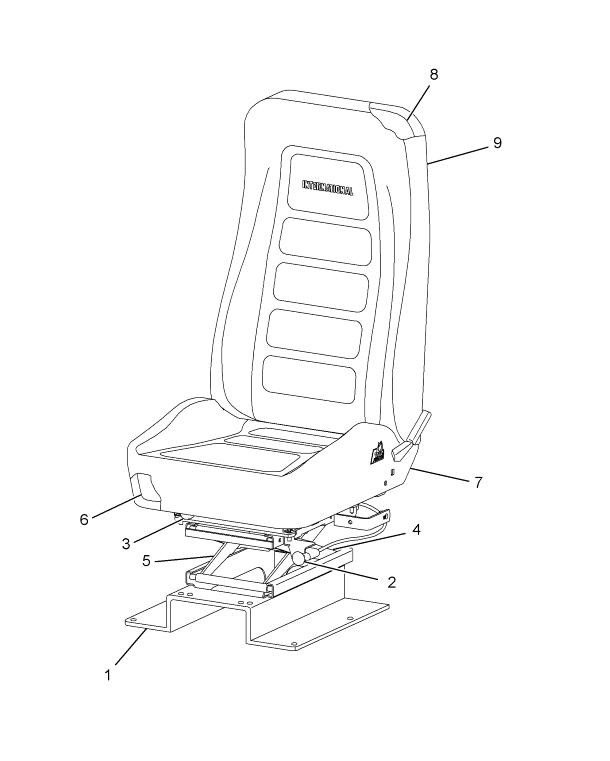

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE SEAT MOUNTING LOWER | 1 | 1691495C1 |
| LEVER, SEAT OTR | 1 | 1697594C1 |
| CUSHION, SEAT BOTTOM | 1 | 2508312C1 |
| COVER, SEAT CUSHION | 1 | 2590465C1 |
| CUSHION, HIGH BACK SEAT BACK | 1 | 2508311C1 |
| PEDESTAL, SEAT | 1 | 2590462C91 |
| RISER, SEAT SUPPORT | 1 | 2590463C1 |
| COVER, BACK CUSHION HIGH-BACK W/LOGO | 1 | 2590466C1 |
CROSS REFERENCES
- HO BOST 7503-400F
- HO BOST 7503-400F
- HO BOST 7503-4285F
- HO BOST 7503-4285F
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
