3607752C92
SEAT, PASSENGER HIGH AIR SUSPENSION VINYL AIR LUMBAR NFPA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$499.95
$599.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, PASSENGER HIGH AIR SUSPENSION VINYL AIR LUMBAR NFPA

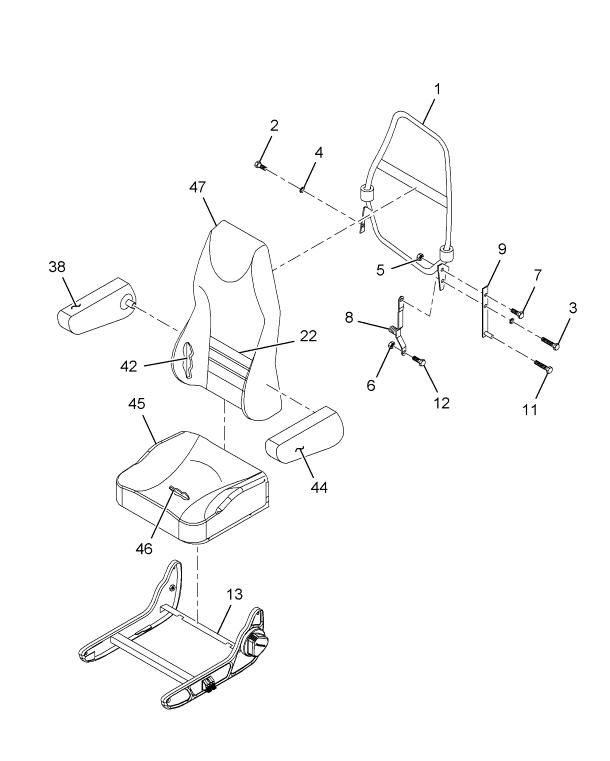

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FRAME, SEAT BACK | 1 | 2597791C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT | 1 | 2590238C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 1699520C1 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
