3607751C92
SEAT, DRIVER HIGH AIR SUSPENSION VINYL AIR LUMBAR NPFA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$749.95
$899.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH AIR SUSPENSION VINYL AIR LUMBAR NPFA
Weight
85.18 lbs

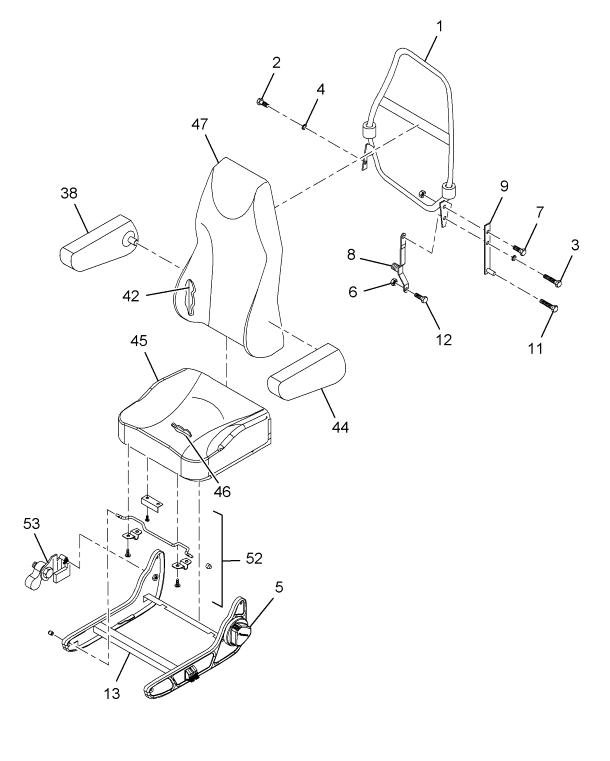

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FRAME, SEAT BACK | 1 | 2597791C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT | 1 | 2590238C91 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
