3607270C91
SEAT, DRIVERS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$779.95
$935.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT DRS 2295-20 TAN MORDURA

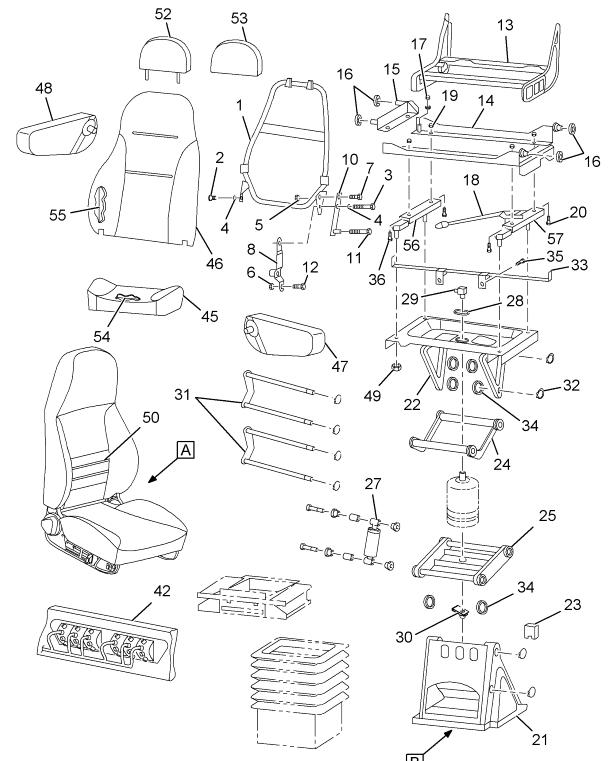

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, MID BACK SEAT | 1 | 2590224C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2505378C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 4 | 2502303C1 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| PEDESTAL, SEAT | 1 | 2505381C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505469C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST, HEAD TAN MORDURA | 1 | 2590227C91 |
| CUSHION, SEAT TAN MORDURA | 1 | 2590225C91 |
| CUSHION, MID BACK SEAT TAN MORDURA | 1 | 2590226C91 |
CROSS REFERENCES
- NATL ST 50246.42CB
- NATL ST 50246.42CB
- NATL ST 50246.42CB27
- NATL ST 50246.42CB27
- NATL ST 5024642CB27
- NATL ST 5024642CB27
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
