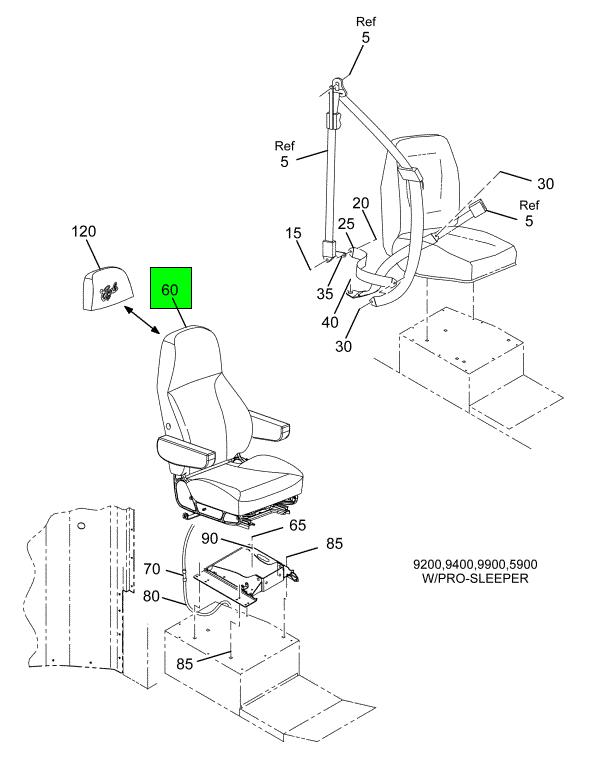

3602210C91
SEAT, PASSENGER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$619.95
$743.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-003
OEM Description
SEAT PASS 2197-18 TAN MORDURA

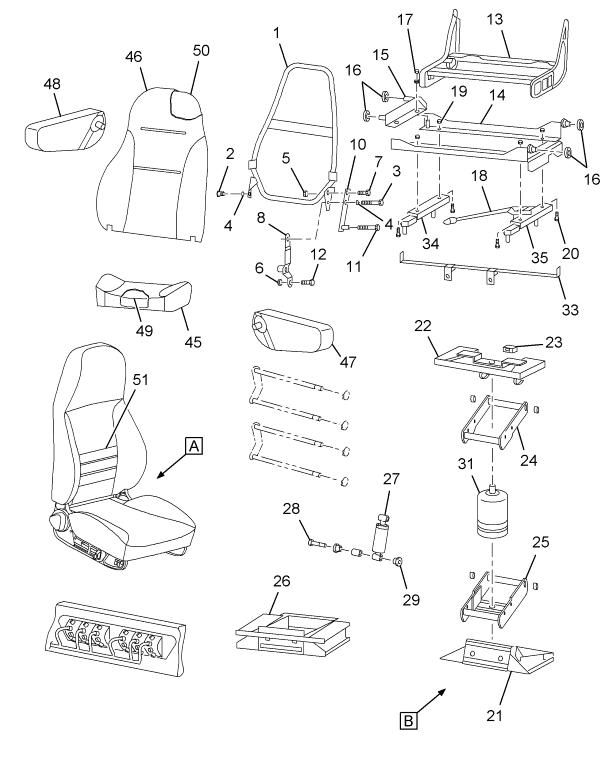

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, HIGH BACK SEAT | 1 | 2588939C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2505378C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2585791C1 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT LOWER BASE | 1 | 2505983C1 |
| PEDESTAL, SEAT UPPER BASE | 1 | 2502314C91 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2502316C91 |
| ARM, LOWER W/BUSHINGS | 1 | 2502317C91 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502319C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501751C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| CUSHION, SEAT TAN MORDURA | 1 | 2590246C91 |
| CUSHION, HIGH BACK SEAT TAN MORDURA | 1 | 2590247C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
CROSS REFERENCES
- NATL ST 70416
- NATL ST 70416
- NATL ST 70416.43AM321
- NATL ST 70416.43AM321
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
