3588458C92

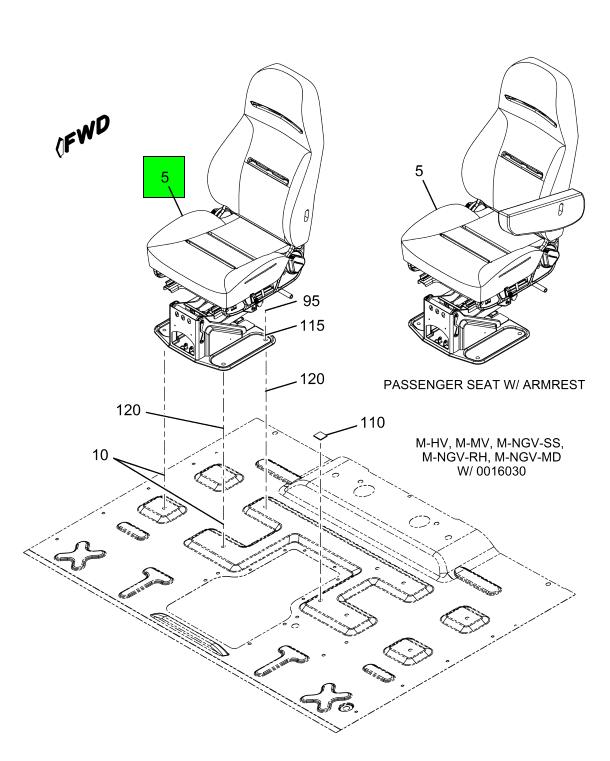

SEAT, PASSENGER HIGH BACK, AIR, VINYL W/CLOTH, 16PNY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$759.95
$911.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT, PASSENGER HIGH BACK, AIR, VINYL W/CLOTH, 16PNY

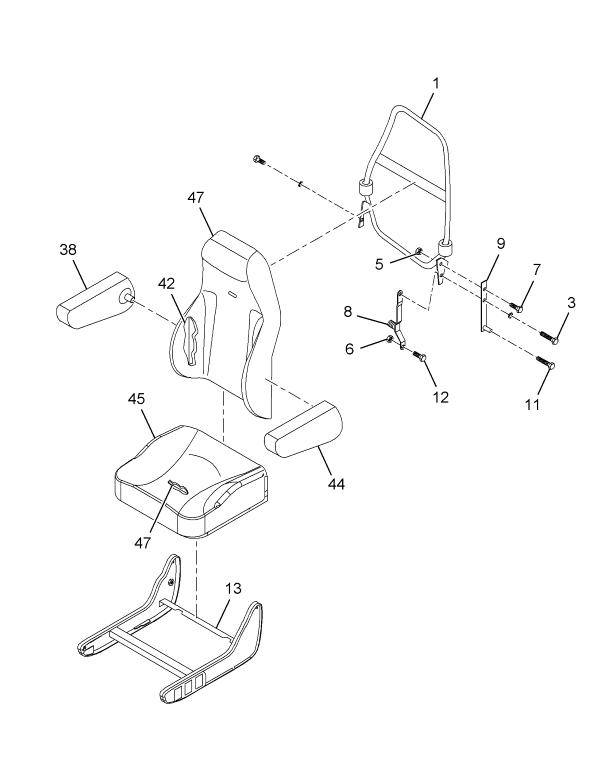

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FRAME, SEAT BACK | 1 | 2597791C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2509103C1 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 4 | 2502303C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 5 | 2505476C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| CUSHION SEAT ASSEMBLY W/UPHOLSTERY | 1 | 2601932C92 |
| COVER BACK CUSHION | 1 | 2604986C2 |
| CUSHION, BACK INDV SEAT | 1 | 2606873C91 |
| COVER SEAT CUSHION | 1 | 2604985C2 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 2509416C91 |
| SUPPORT, TRIPLE CHAMBER AIR LUMBAR | 4 | 2505473C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 1699520C1 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
CROSS REFERENCES
- NATL ST 50309.13BN1A1
- NATL ST 50309.13BN1A1
- NATL ST 5030913BN1A
- NATL ST 5030913BN1A
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
