3582016C92
Seat, Drivers (Air High-Back)
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$569.95
$683.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
Navistar Group Code
16
VMRS
002-037-000
OEM Description
SEAT, DRIVER, HIGH BACK, AIR, TAN

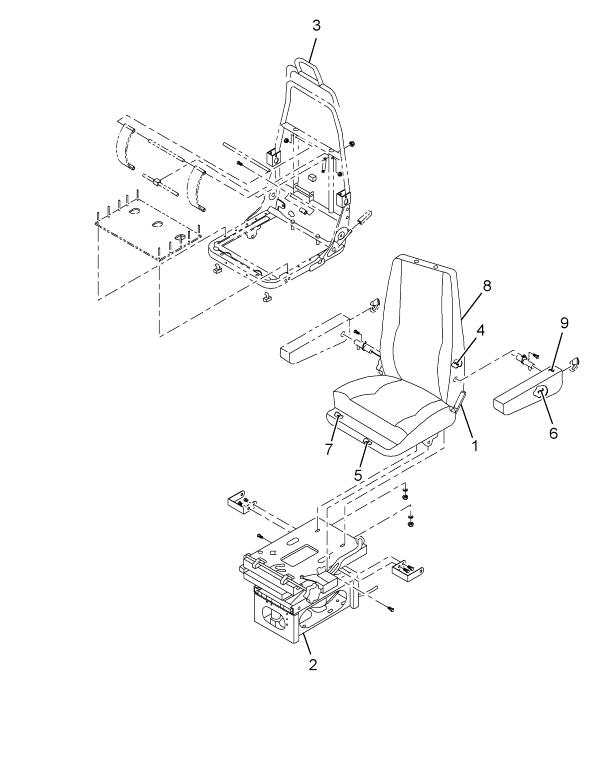

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HANDLE, SEAT ADJUSTABLE RECLINER | 1 | 2503746C1 |
| RISER, SEAT SUPPORT | 1 | 2504140C1 |
| FR, SEAT HIGH BACK | 1 | 2507814C1 |
| PAD, SEAT BACK CUSHION | 1 | 2507819C1 |
| PAD, SEAT CUSHION | 1 | 2585988C1 |
| COVER, FOAM ARMREST Y | 1 | 2598258C91 |
| UPHOLSTERY, SEAT CUSHION | 1 | 2614558C1 |
| UPHOLSTERY, SEAT BACK | 1 | 2614559C1 |
| UPHOLSTERY, ARMREST | 1 | 2614560C1 |
| UPHOLSTERY, ARMREST | 1 | 2614561C1 |
CROSS REFERENCES
- BOSTROM 2352049-L80
- BOSTROM 2352049-L80
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
