3580968C91
SEAT, MID BACK DRIVER AIR SUSPENSION BROWN MORDURA 2296-20
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$629.95
$755.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, MID BACK DRIVER AIR SUSPENSION BROWN MORDURA 2296-20

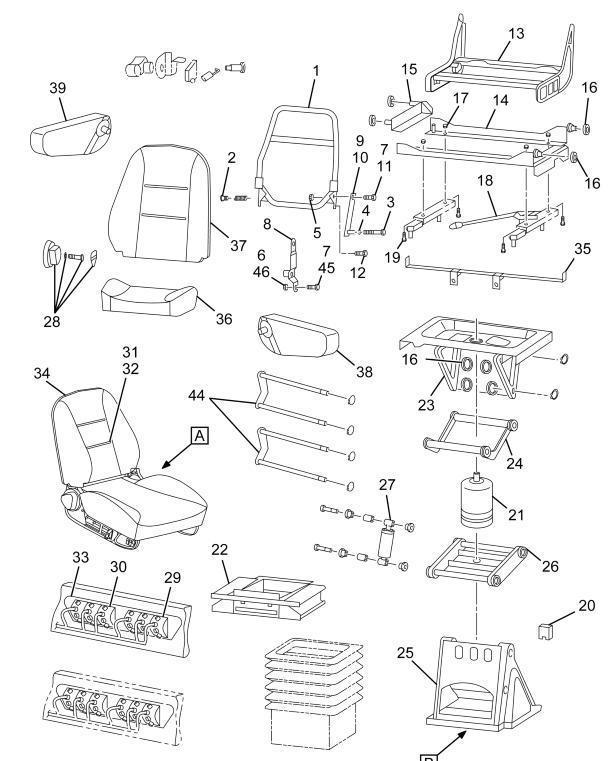

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT BACK MID BACK | 1 | 2505880C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT LOWER | 1 | 2505985C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 4 | 2502303C1 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2505979C91 |
| ARM, LOWER W/BUSHINGS | 2 | 2502317C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1685458C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| SUPPORT, TRIPLE CHAMBER AIR LUMBAR | 1 | 2505473C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 1699520C1 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| PAD, CRASH MID BACK SEAT | 1 | 2505881C1 |
| BRACKET, SEAT MOUNTING | 1 | 2501370C1 |
| CUSHION, SEAT BOTTOM BROWN MORDURA | 1 | 2509650C91 |
| CUSHION, MID BACK SEAT BACK BROWN MORDURA | 1 | 2509651C91 |
| ARMREST BROWN MORDURA LEFT HAND | 1 | 2506690C1 |
| ARMREST BROWN MORDURA RIGHT HAND | 1 | 3561054C1 |
| KIT, SEAT BACK RECLINER KNOB GRAY | 1 | 2505360C91 |
| KIT, SEAT SHAFTS | 1 | 1691485C91 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
CROSS REFERENCES
- NATL ST &60291.44A
- NATL ST &60291.44A
- NATL ST &60291.44ADOA
- NATL ST &60291.44ADOA
- NATL ST 60291.44AD0A
- NATL ST 60291.44AD0A
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
