3571734C93
Seat, Passenger (Air High-Back)
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$569.95
$683.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
Navistar Group Code
16
OEM Description
SEAT PASS T905LS SWVL TAN(AIR)

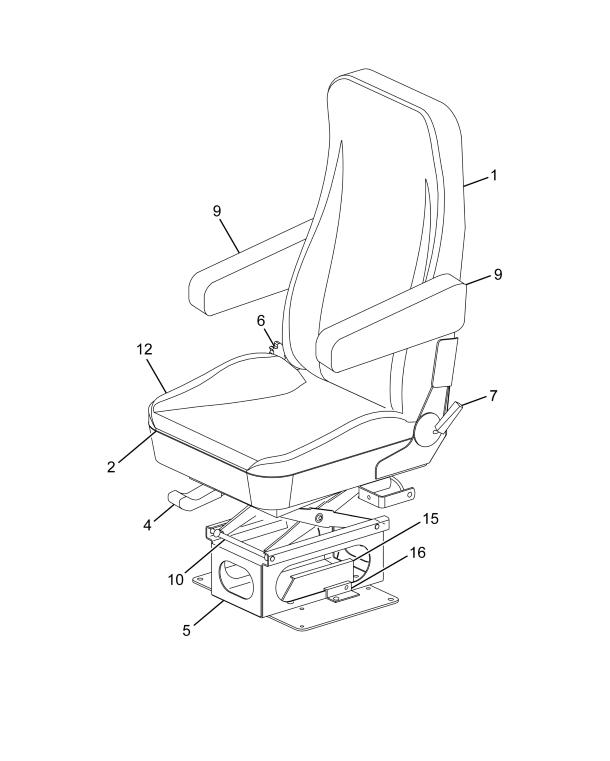

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT HIGH BACK | 1 | 2585862C1 |
| PLATE, SEAT UPPER WELDMENT | 1 | 1697799C1 |
| PAD, HIGH BACK SEAT BACK CUSHION | 1 | 1698425C1 |
| COVER, HIGH BACK SEAT CUSHION SEAT BACK TAN CLOTH | 1 | 2509332C1 |
| PAD, SEAT CUSHION | 1 | 1699241C1 |
| COVER, SEAT CUSHION SEAT BOTTOM TAN CLOTH | 1 | 2509331C1 |
| ADAPTER SEAT MOUNTING FRONT | 1 | 2036828C1 |
| ADAPTER SEAT MOUNTING SIDE | 1 | 2036827C1 |
| SUPPORT, ASSEMBLY SEAT FOAM | 1 | 1697575C1 |
| LEVER, INNER SEAT | 1 | 1697596C1 |
| LEVER, OUTER SEAT | 1 | 1699628C1 |
| BASE, PASSENGER SEAT MOUNTING | 1 | 1691495C1 |
| BASE, PASSENGER SEAT MOUNTING | 1 | 1697598C1 |
| KNOB, ADJUSTABLE LUMBAR SEAT | 1 | 2500386C1 |
| HANDLE, SEAT ADJUSTABLE RECLINER | 1 | 2503746C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
