3571328C94
SEAT,DRIVER, HI BACK, AIR, TAN
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$659.95
$791.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT DRS T914 HI SWVL TAN(AIR)

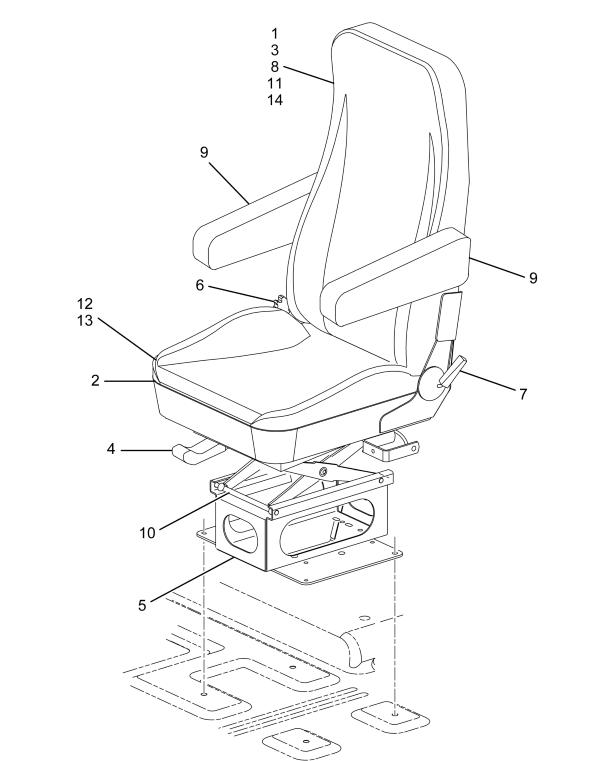

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT HIGH BACK | 1 | 2585862C1 |
| COVER, SEAT CUSHION SEAT BOTTOM TAN CLOTH | 1 | 2509331C1 |
| PAD, SEAT CUSHION | 1 | 1699241C1 |
| COVER, HIGH BACK SEAT CUSHION SEAT BACK TAN CLOTH | 1 | 2509332C1 |
| SUPPORT, ASSEMBLY SEAT FOAM | 1 | 1697575C1 |
| PLATE SEAT UPPER WELDMENT | 1 | 1697581C92 |
| PLATE SEAT UPPER WELDMENT | 1 | 1697592C1 |
| LEVER, COMPLETE | 1 | 1691513C1 |
| LEVER, OUTER SEAT | 1 | 1699628C1 |
| RISER, SEAT SUPPORT | 1 | 1691515C1 |
| RISER, SEAT SUPPORT | 1 | 1697597C1 |
| KNOB, ADJUSTABLE LUMBAR SEAT | 1 | 2500386C1 |
| HANDLE, SEAT ADJUSTABLE RECLINER | 1 | 2503746C1 |
| PAD, HIGH BACK SEAT BACK CUSHION | 1 | 1698425C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
