3570858C93

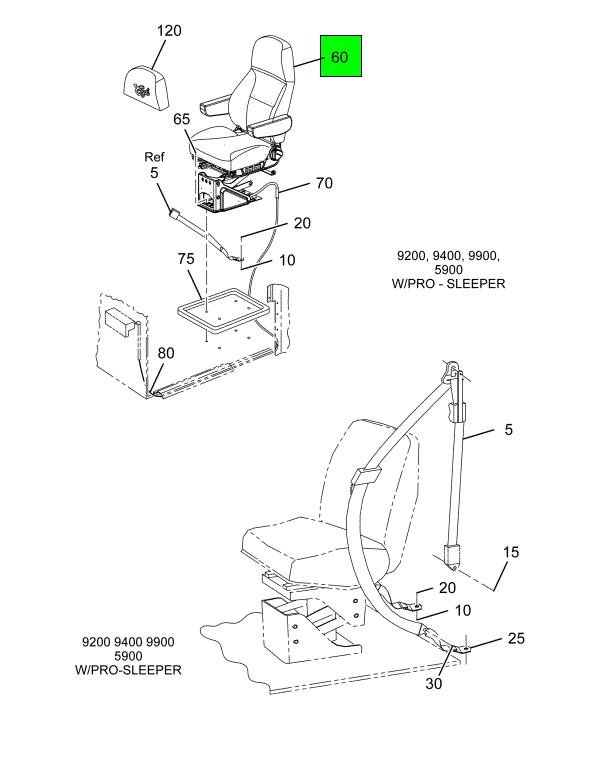

SEAT, DRIVER HIGH BACK, AIR, TAN CLOTH, SLEEPER
Navistar International®
AVAILABLE
8 are currently available
Ships within 6-8 business days
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
The driver high back air tan cloth sleeper seat is engineered for maximum comfort and support during long drives. This seat features a high-back design that cradles the back and neck, reducing fatigue and enhancing the overall driving experience. The air cushioning system allows the seat to adjust to the user's body, providing personalized comfort that is essential for long hours on the road. The tan cloth material is chosen for its durability and ease of maintenance, ensuring that the seat remains in excellent condition over time.
Navistar International Corporation has a storied history in the automotive industry, marked by a commitment to producing high-quality vehicles and components. The company's dedication to innovation has earned it a reputation for excellence among commercial operators. The driver's high back air tan cloth sleeper seat is engineered for maximum comfort and support during long drives. This seat features a high-back design that cradles the back and neck, reducing fatigue and enhancing the overall driving experience. The air cushioning system allows the seat to adapt to the user's body, providing personalized comfort that is essential for long hours on the road. Navistar's focus on high-quality materials and thoughtful design reflects its dedication to meeting the needs of modern drivers.
- - 9200 Premium Conventional (built before 3/15/96)
- - 5900I Severe Service Conventional
- - 9400 Premium Conventional (built on 3/15/96 & later)
- - 9900 Premium Conventional (built on or after 3/15/96)
This part fits the following models:
At Source One Parts Center, we understand the need for a high-quality driver's seat designed for maximum comfort and support. Our air tan cloth sleeper seat features a high-back design that cradles the back and neck, reducing fatigue during long drives. We pride ourselves on our extensive selection, allowing you to find the perfect fit for your vehicle. Our knowledgeable staff is dedicated to helping you make informed decisions, ensuring that you receive a product that meets your specific needs. With a focus on quality and customer satisfaction, Source One is your top choice for seating solutions.
SPECIFICATIONS
BILL OF MATERIALS
Name | Quantity | Part Number |
---|---|---|
FR, HIGH BACK SEAT | 1 | 2588939C1 |
BASE, DRIVER SEAT MOUNTING SWIVEL W/TAN HANDLE | 1 | 2508983C1 |
BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
SUPPORT, TRIPLE CHAMBER AIR LUMBAR | 1 | 2505473C1 |
SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
FR, LOWER SEAT | 1 | 2586959C1 |
SUPPORT, CHUGGER | 1 | NS22972301 |
BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
STUD, TRACK | 4 | 2502303C1 |
PEDESTAL, SEAT | 1 | 2505381C91 |
BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
BUMPER, SEAT STOP | 1 | 2505384C1 |
ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
KNOB, SEAT TRACK | 1 | 2585791C1 |
RING, SNAP | 4 | 544968R1 |
BRACKET, MOUNTING SEAT BELT | 1 | 2505469C1 |
BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
REST ARM RIGHT HAND | 1 | 2606836C1 |
REST ARM LH | 1 | 2606835C1 |
CUSHION BACK HIGH TAN | 1 | 2606939C91 |
COVER ARMREST LEFT HAND | 1 | 2606837C1 |
COVER ARMREST RIGHT HAND | 1 | 2606838C1 |
CUSHION, SEAT TAN CLOTH | 1 | 2591441C91 |
VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
NUT, 5/16-18 LOCK | 1 | NS17706049 |
BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
CROSS REFERENCES
- NATL ST 50233
- NATL ST 50233
- NATL ST 50233.14BG321
- NATL ST 50233.14BG321
