3570014C91
SEAT, HIGH BACK PASSENGER AIR SUSPENSION T905
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$589.95
$707.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK PASSENGER AIR SUSPENSION T905

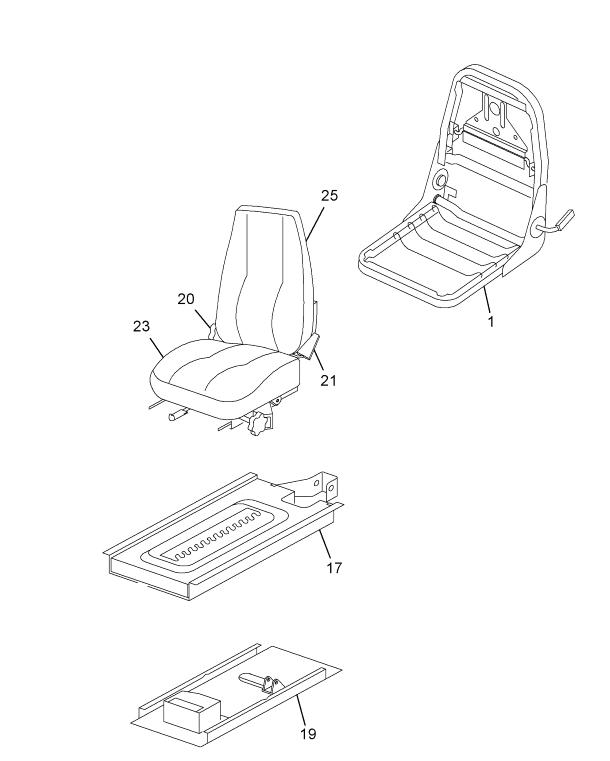

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT MID BACK | 1 | 2506811C1 |
| PLATE, SEAT UPPER WELDMENT | 1 | 1697799C1 |
| BASE, PASSENGER SEAT MOUNTING | 1 | 1691495C1 |
| BASE, PASSENGER SEAT MOUNTING | 1 | 1697598C1 |
| KNOB, ADJUSTABLE LUMBAR SEAT | 1 | 2500386C1 |
| HANDLE, SEAT ADJUSTABLE RECLINER | 1 | 2503746C1 |
| PAD, CRASH SEAT CUSHION | 1 | 2506816C1 |
| SUPPORT, ASSEMBLY SEAT FOAM | 1 | 1697575C1 |
| COVER, SEAT CUSHION SEAT BOTTOM BROWN MORDURA | 1 | 2506815C1 |
| PAD, CUSHION MID BACK SEAT | 1 | 2506818C1 |
| COVER, MID BACK SEAT CUSHION SEAT BACK BROWN MORDURA | 1 | 2506817C1 |
| KIT, AIR LUMBAR SEAT | 1 | 2503744C91 |
| KIT, SEAT BACK RESTRICTION | 1 | 573787C91 |
| KIT, SEAT BACK RESTRICTION | 1 | 1697574C91 |
| KIT, SEAT MOUNTING HARDWARE | 1 | 1691516C91 |
| KIT, ICP BRACKET | 1 | 1691496C91 |
| KIT, ICP BRACKET | 1 | 1697576C91 |
| KIT SEAT AIR LUMBAR VALVE RIGHT HAND SIDE | 1 | 2504122C91 |
| KIT, ISOLATOR SPRING SEAT | 1 | 1697577C91 |
| KIT, SEAT CONTROL HANDLE | 1 | 2506812C91 |
| KIT, TILT ROD | 1 | 2506813C91 |
| SEAT GUIDE | 1 | 1697580C91 |
| KIT, SEAT ISOLATOR | 1 | 2508170C91 |
| KIT, SEAT SUSPENSION HARDWARE | 1 | 1696110C91 |
| KIT, SHOCK ABSORBER 905/910/705E/710E | 1 | 1696119C91 |
| KIT, AIR SPRING 905/910/705E/710E | 1 | 1696125C91 |
| KIT, SEAT SLIDE RAIL | 1 | 2501475C91 |
| KIT, SEAT LEVER ASSEMBLY | 1 | 2503756C91 |
| KIT, ADJUSTABLE SEAT RESTRICTION FORE/AFT | 1 | 1697591C91 |
CROSS REFERENCES
- BOSTROM 2340084-253
- BOSTROM 2340084-253
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
