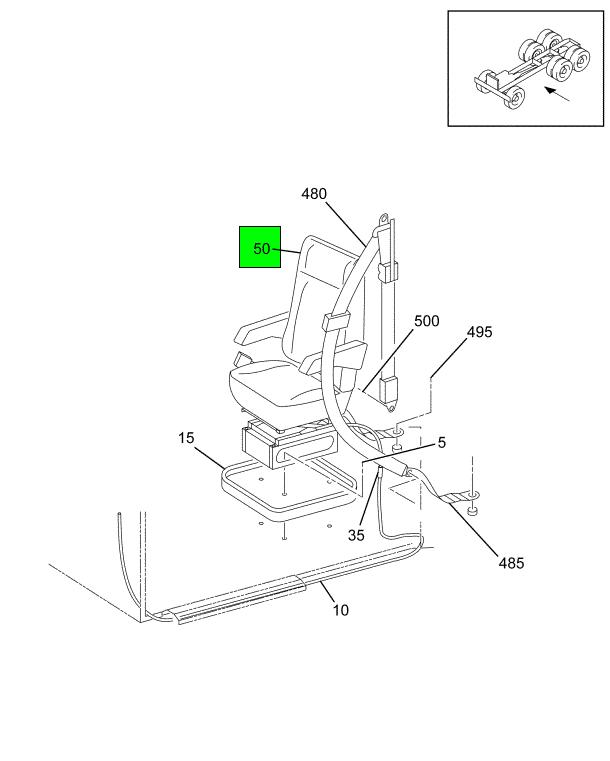

3566391C91
SEAT, MID BACK DRIVER VOYAGER GRAY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$649.95
$779.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, MID BACK DRIVER VOYAGER GRAY
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PEDESTAL, SEAT W/8" SLIDES | 1 | 2586480C91 |
| CUSHION, SEAT BOTTOM GRAY | 1 | 2586481C91 |
| CUSHION, HIGH BACK SEAT BACK GRAY FABRIFORM W/FR | 1 | 2586482C91 |
CROSS REFERENCES
- SEARS M ZFTNG30AA000
- SEARS M ZFTNG30AA000
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
