3565114C91
SEAT, HIGH BACK DRIVERS CHARCOAL MORDURA 195
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$859.95
$1,031.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK DRIVERS CHARCOAL MORDURA 195

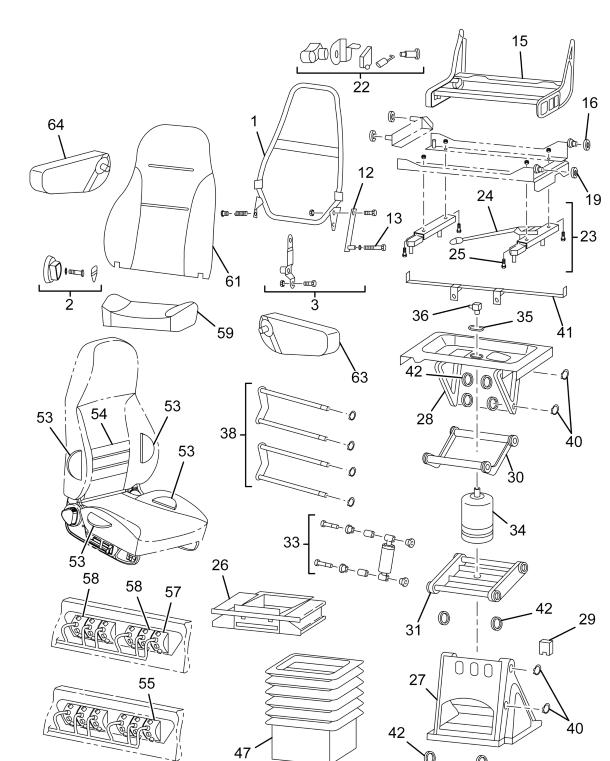

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Seat Back High Back Front | 1 | 2588939C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2505359C1 |
| Mounting Seat Pedestal Bracket | 1 | 2505006C1 |
| Special Backrest Adjuster Knob Bolt | 1 | 1685452C1 |
| Seat Lower Front | 1 | 2505985C1 |
| Chugger Roller Assembly Seat Bearing | 4 | 1685465C1 |
| Seat Track Knob | 1 | 2505380C1 |
| Track Stud | 4 | 2502303C1 |
| Seat Pedestal | 1 | 2505381C91 |
| Mounting Seat Lower Base | 1 | 2505382C1 |
| Driver Seat Mounting Swivel Base | 1 | 2505383C1 |
| Seat Stop Bumper | 1 | 2505384C1 |
| Arm Assembly Upper W/BUSHINGS | 1 | 2505385C1 |
| Up - Assembly Lower F/LTD Stop Arm | 1 | 2505386C91 |
| Arm Lower W/BUSHINGS | 1 | 2502060C91 |
| Shock Absorber Seat Absorber | 1 | 507831C91 |
| Seat Air Spring Retainer | 1 | 1685464C1 |
| Hose Connector 90 Degree Elbow | 1 | 571156C1 |
| Snap Ring | 4 | 544968R1 |
| Mounting Seat Belt Bracket | 1 | 2505469C1 |
| Seat Arm Spacer Bushing | 8 | 2505470C1 |
| Seat Base Suspension Cover | 1 | 1698112C1 |
| LIMBAR Assembly Seat Air Support | 4 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 1699520C1 |
| Triple Chamber Air Lumbar Support | 1 | 2505473C1 |
| Seat Six Button Manifold | 1 | 2505474C1 |
| High Pressure Air Red Handle Valve | 1 | 2505475C1 |
| Low Pressure Air Gray Handle Valve | 5 | 2505476C1 |
| Mordura Seat Burgundy Cushion | 1 | 2506700C91 |
| Mordura High Back Seat Back Burgundy Cushion | 1 | 2507528C91 |
| Mordura Armrest Burgundy Left Hand | 1 | 2505872C1 |
| Mordura Armrest Burgundy Right Hand | 1 | 3561056C1 |
| 16-18 5/ Lock Nut | 1 | NS17706049 |
| Seat Recline Limiting Bracket | 1 | 2590579C91 |
| Chugger Support | 1 | NS22972301 |
| 16-18 Nut And Washer Assembly 5/ | 2 | NS22815201 |
| 90 Degree Barbed Elbow | 3 | NS18002753 |
CROSS REFERENCES
- NATL ST &50163.44C
- NATL ST &50163.44C
- NATL ST &50163.44CF3E
- NATL ST &50163.44CF3E
- NATL ST 50163.44CF3E
- NATL ST 50163.44CF3E
- NATL ST 5016344CF3E
- NATL ST 5016344CF3E
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
