3558485C92

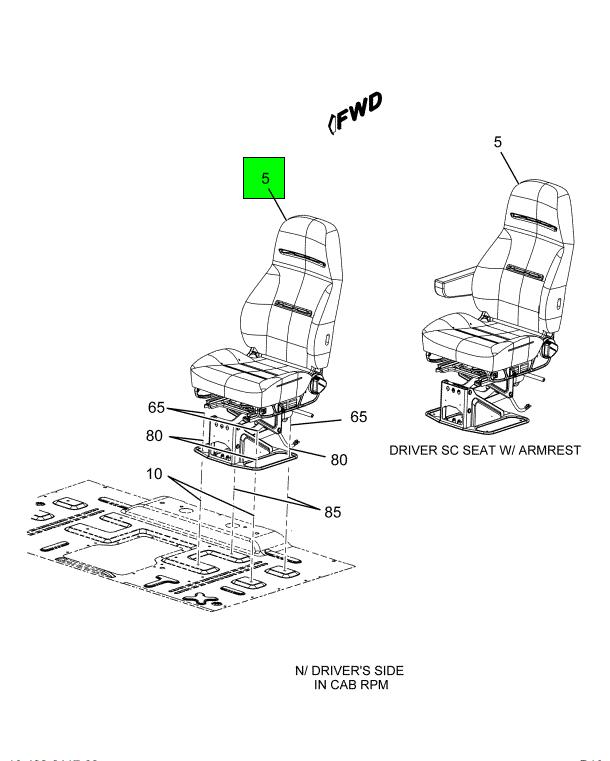

Seat, Driver
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$889.95
$1,067.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
Navistar Group Code
16
OEM Description
SEAT, HIGH BACK DRIVERS VINYL W/MECHANICAL LUMBAR W/ARMREST
Weight
91.0008 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT GRAY VINYL | 1 | 2505891C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| BASE, SEAT MOUNTING LOWER | 1 | 2592624C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| CUSHION, MID BACK SEAT BACK GRAY VINYL | 1 | 2585433C91 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| VALVE, AIR LEVEL SEAT ELECTRIC PADDLE | 1 | 2508945C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2585431C1 |
| FR, SEAT LOWER | 1 | 2507147C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| KIT, SEAT BACK RECLINER KNOB GRAY | 1 | 2505360C91 |
| KIT, SEAT BACK FR TO LOWER FR | 1 | 2505361C91 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| KIT, SEAT CHUGGER | 1 | 1698197C91 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| KIT, SEAT CHUGGER LOCKOUT | 1 | 2505379C91 |
| KIT, SEAT ADJUSTER TRACK | 1 | 2505886C91 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| KIT, COMPRESSOR ASSEMBLY | 1 | 2587144C91 |
| KIT, REPAIR SEAT CUSHION FRONT | 1 | 2595024C91 |
| COMPRESSOR ASSEMBLY, | 1 | 2592528C91 |
| KIT, AIR SPRING | 1 | 1696990C91 |
| KIT, SHAFT SEAT WITH BUSHING | 1 | 1660393C91 |
| KIT, SEAT BASE COVER AND SHROUD GRAY | 1 | 2505835C91 |
| KIT, SEAT RISER BELLOWS | 1 | 2505472C91 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| STUD, TRACK | 4 | 2502303C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
